SKU: UCF202-10N-SNR

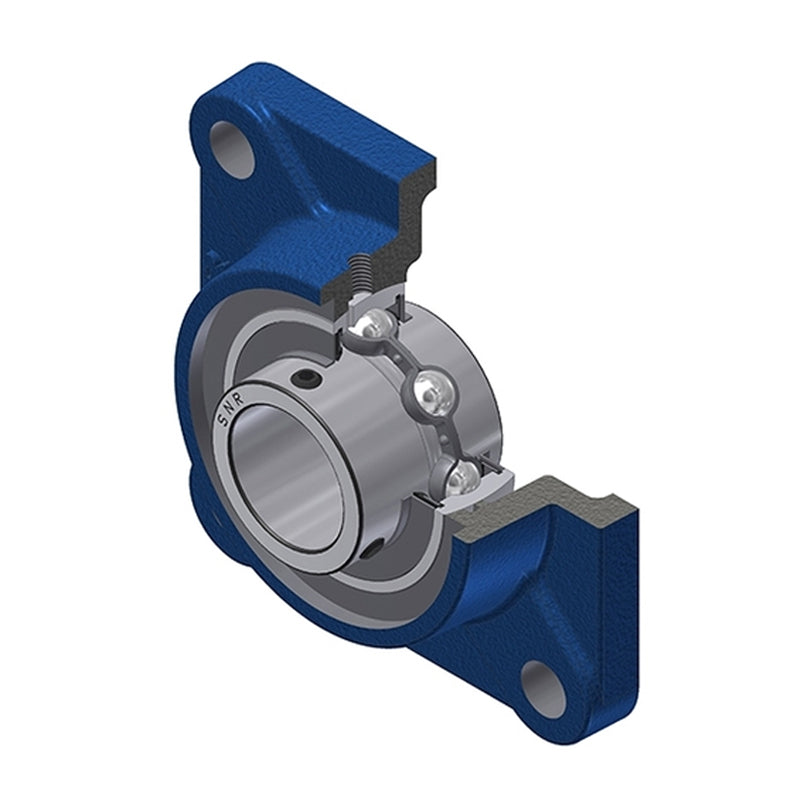

SNR UCF202-10N Imperial Four Bolt Square Cast Iron Flange Housing with 5/8 inch Bore Insert - Allow 2-3 Days
SNR UCF202-10N Imperial Four Bolt Square Cast Iron Flange Housing with 5/8 inch Bore Insert - Allow 2-3 Days
Regular price
$35.28
ex VAT
Regular price
Sale price
$35.28
ex VAT
In stock
Price Break
3+
$26.28
4+
$25.22
9+
$24.69
19+
$23.90
49+
$23.36
99+
$22.04
499+
$18.59
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 15.88mm = 0.625 (5/8) inch
- Style:
- UCF
- Bolt Hole Centres:
- 64mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 5/8 inch |
| A | 25.5mm |
| A1 | 11mm |
| A2 | 33.3mm |
| B | 31mm |
| e | 15mm |
| J | 64mm |
| L | 86mm |
| N | 12mm |
| S | 12.7mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 12.8 kN |
| Static load C0 | 6.65 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 3.7 Nm |
| Mass | 0.62 kg |
