• SNR UCF208CO Metric Four Bolt Square Cast Iron Flange Housing with 40mm Bore Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
  • SNR
1 2

SKU: UCF208CO-SNR

SNR UCF208CO Metric Four Bolt Square Cast Iron Flange Housing with 40mm Bore Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days

SNR UCF208CO Metric Four Bolt Square Cast Iron Flange Housing with 40mm Bore Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
$66.59 ex VAT
$66.59 ex VAT
Sale Sold out

In stock

Price Break
3+ $44.61
4+ $42.10
9+ $41.60
19+ $41.10
49+ $40.60
99+ $40.10
499+ $37.59
999+ $37.09
1999+ $36.59
2999+ $36.09
4999+ $35.09

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

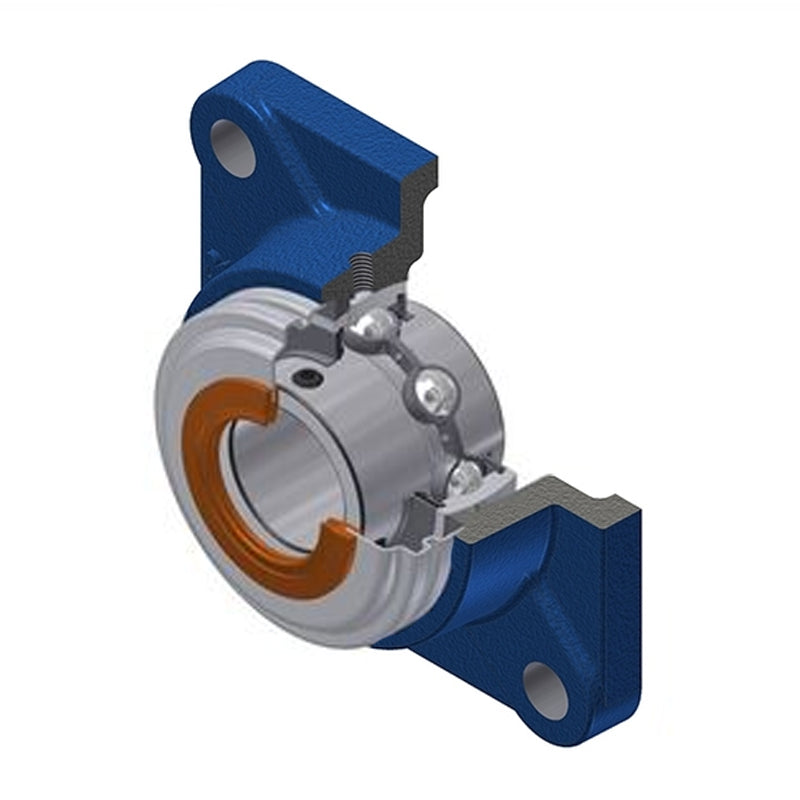

UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
SNR - High Quality
Inside Diameter:
40mm
Style:
UCF
Bolt Hole Centres:
102mm
Technical
--- Dimensions
Shaft diameter d 40mm
A 36mm
A1 15mm
A2 51.2mm
B 49.2mm
e 21mm
J 102mm
L 130mm
N 16mm
S 19mm
Dz 88mm
Z 54.9mm
G M6x1
--- Load rating
Dynamic load C 29.6 kN
Static load C0 18.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 1.89 kg
