• SNR UCF208N Metric Four Bolt Square Cast Iron Flange Housing with 40mm Bore Insert - Allow 2-3 Days
  • SNR
1 2

SKU: UCF208N-SNR

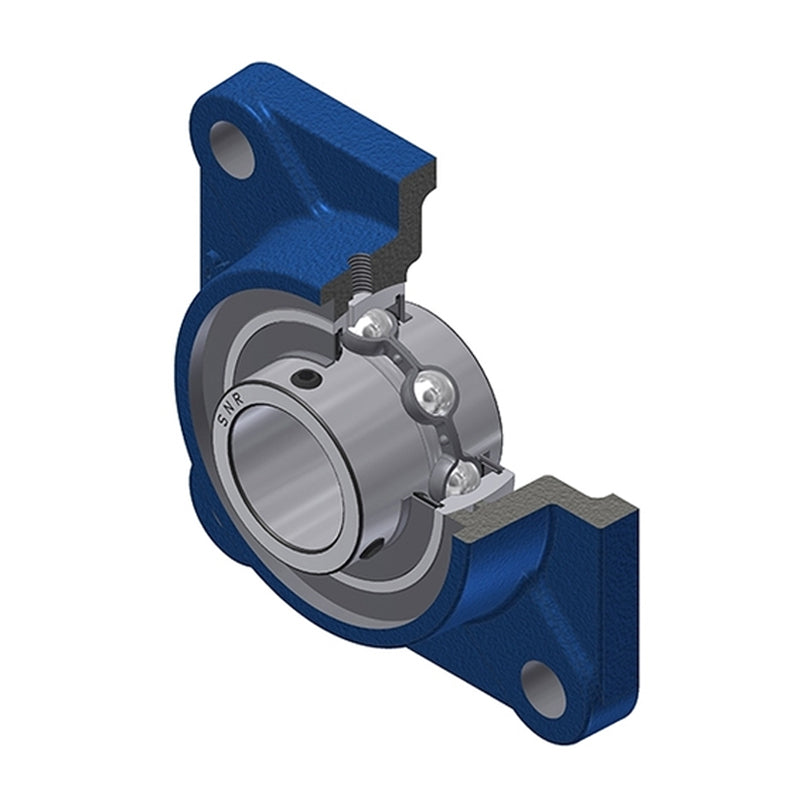

SNR UCF208N Metric Four Bolt Square Cast Iron Flange Housing with 40mm Bore Insert - Allow 2-3 Days

SNR UCF208N Metric Four Bolt Square Cast Iron Flange Housing with 40mm Bore Insert - Allow 2-3 Days
$51.23 ex VAT
$51.23 ex VAT
Sale Sold out

In stock

Price Break
3+ $34.31
4+ $32.39
9+ $32.00
19+ $31.62
49+ $31.23
99+ $30.84
499+ $28.92
999+ $28.53
1999+ $28.15
2999+ $27.76
4999+ $26.99

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
40mm
Style:
UCF
Bolt Hole Centres:
102mm
Technical
--- Dimensions
Shaft diameter d 40mm
A 36mm
A1 15mm
A2 51.2mm
B 49.2mm
e 21mm
J 102mm
L 130mm
N 16mm
S 19mm
G M6x1
--- Load rating
Dynamic load C 29.6 kN
Static load C0 18.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 1.89 kg
