• SNR UCF210NAGR Metric Four Bolt Square Cast Iron Flange Housing with 50mm Bore Insert - Allow 2-3 Days
  • SNR
1 2

SKU: UCF210NAGR-SNR

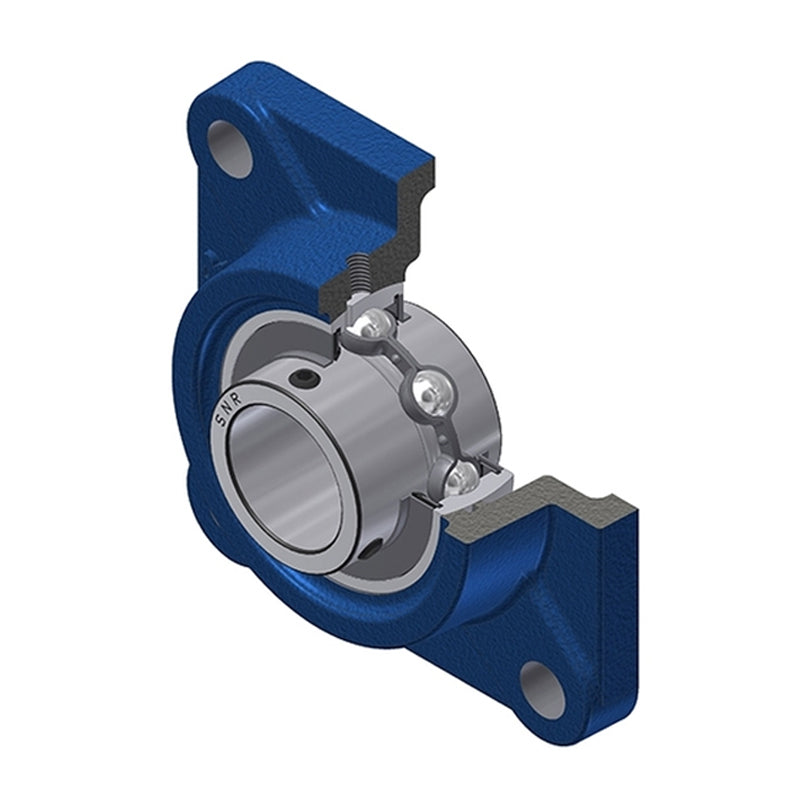

SNR UCF210NAGR Metric Four Bolt Square Cast Iron Flange Housing with 50mm Bore Insert - Allow 2-3 Days

SNR UCF210NAGR Metric Four Bolt Square Cast Iron Flange Housing with 50mm Bore Insert - Allow 2-3 Days
$82.18 ex VAT
$82.18 ex VAT
Sale Sold out

In stock

Price Break
3+ $55.05
4+ $51.96
9+ $51.34
19+ $50.72
49+ $50.10
99+ $49.48
499+ $46.39
999+ $45.77
1999+ $45.15
2999+ $44.53
4999+ $43.30

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
50mm
Style:
UCF
Bolt Hole Centres:
111mm
Technical
--- Dimensions
Shaft diameter d 50mm
A 40mm
A1 16mm
A2 54.6mm
B 51.6mm
e 22mm
J 111mm
L 143mm
N 16mm
S 19mm
G M6x1
--- Load rating
Dynamic load C 35.1 kN
Static load C0 23.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 22 Nm
Mass 2.5 kg
