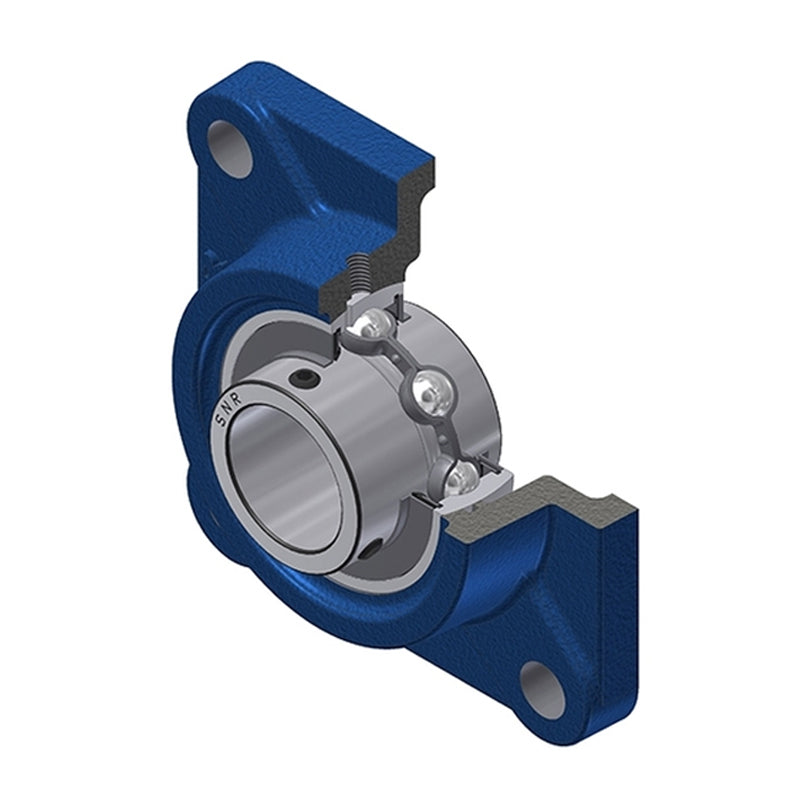

• SNR UCF210T04 Metric Four Bolt Square Cast Iron Flange Housing with 50mm Bore Insert Low Temperature Version - Allow 2-3 Days
1 1

SKU: UCF210T04-SNR

SNR UCF210T04 Metric Four Bolt Square Cast Iron Flange Housing with 50mm Bore Insert Low Temperature Version - Allow 2-3 Days

SNR UCF210T04 Metric Four Bolt Square Cast Iron Flange Housing with 50mm Bore Insert Low Temperature Version - Allow 2-3 Days
$176.72 ex VAT
$176.72 ex VAT
Sale Sold out

In stock

Price Break
3+ $131.65
4+ $126.33
9+ $123.67
19+ $119.68
49+ $117.02
99+ $110.37
499+ $93.09
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
SNR - High Quality
Inside Diameter:
50mm
Style:
UCF
Bolt Hole Centres:
111mm
Technical
--- Dimensions
Shaft diameter d 50mm
A 40mm
A1 16mm
A2 54.6mm
B 51.6mm
e 22mm
J 111mm
L 143mm
N 16mm
S 19mm
G M6x1
--- Load rating
Dynamic load C 35.1 kN
Static load C0 23.2 kN
--- Unit information
Operating temperature min. -40°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 22 Nm
Mass 2.5 kg
