SKU: UCF211-32L3-SNR

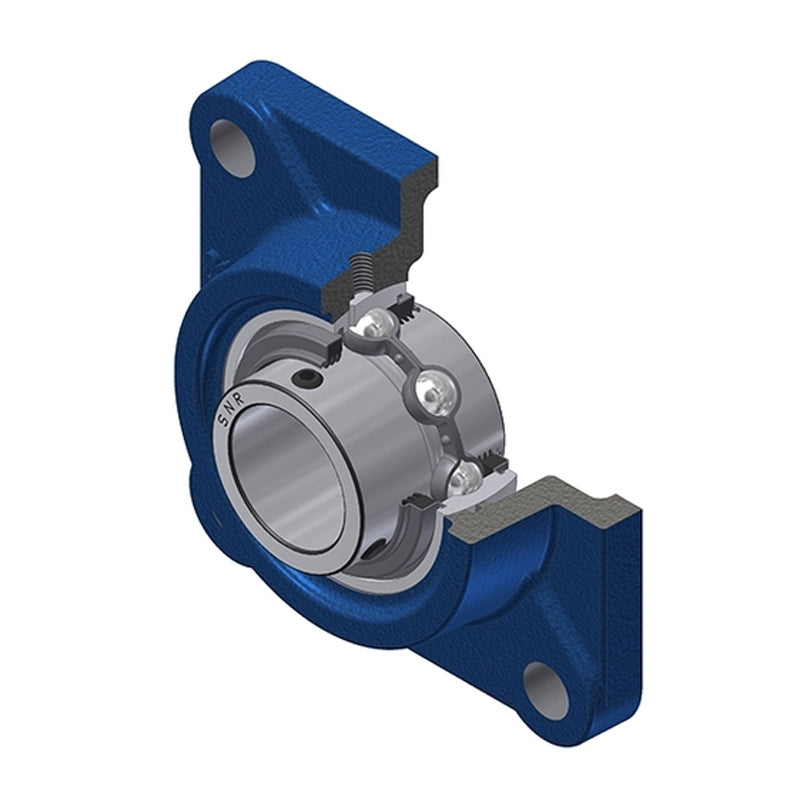

SNR UCF211-32L3 Imperial Four Bolt Square Cast Iron Flange Housing with 2 inch Bore Insert with Triple Lip Seal - Allow 2-3 Days
SNR UCF211-32L3 Imperial Four Bolt Square Cast Iron Flange Housing with 2 inch Bore Insert with Triple Lip Seal - Allow 2-3 Days
Regular price
$136.76
ex VAT
Regular price
Sale price
$136.76
ex VAT
In stock
Price Break
3+
$91.61
4+
$86.46
9+
$85.43
19+
$84.40
49+
$83.37
99+
$82.34
499+
$77.20
999+
$76.17
1999+
$75.14
2999+
$74.11
4999+
$72.05
Quantity
Couldn't load pickup availability
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 50.8mm = 2 Inch
- Style:
- UCF
- Bolt Hole Centres:
- 130mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 2 inch |
| A | 43mm |
| A1 | 18mm |
| A2 | 58.4mm |
| B | 55.6mm |
| e | 25mm |
| J | 130mm |
| L | 162mm |
| N | 19mm |
| S | 22.2mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 43.55 kN |
| Static load C0 | 29.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 16.8 Nm |
| Mass | 3.46 kg |
