SKU: UCF211-34N-SNR

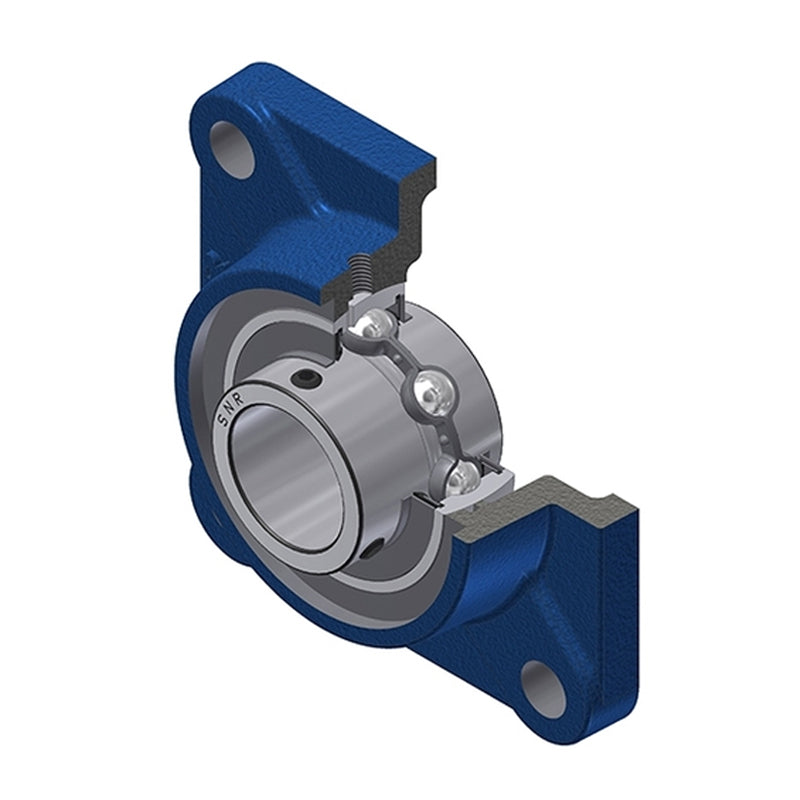

SNR UCF211-34N Imperial Four Bolt Square Cast Iron Flange Housing with 2-1/8 inch Bore Insert - Allow 2-3 Days
SNR UCF211-34N Imperial Four Bolt Square Cast Iron Flange Housing with 2-1/8 inch Bore Insert - Allow 2-3 Days
Regular price
$103.07
ex VAT
Regular price
Sale price
$103.07
ex VAT
In stock
Price Break
3+
$76.78
4+
$73.68
9+
$72.13
19+
$69.80
49+
$68.25
99+
$64.37
499+
$54.29
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 53.98mm = 2.125 (2-1/8) inch
- Style:
- UCF
- Bolt Hole Centres:
- 130mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 2-1/8 inch |
| A | 43mm |
| A1 | 18mm |
| A2 | 58.4mm |
| B | 55.6mm |
| e | 25mm |
| J | 130mm |
| L | 162mm |
| N | 19mm |
| S | 22.2mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 43.55 kN |
| Static load C0 | 29.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 16.8 Nm |
| Mass | 3.36 kg |
