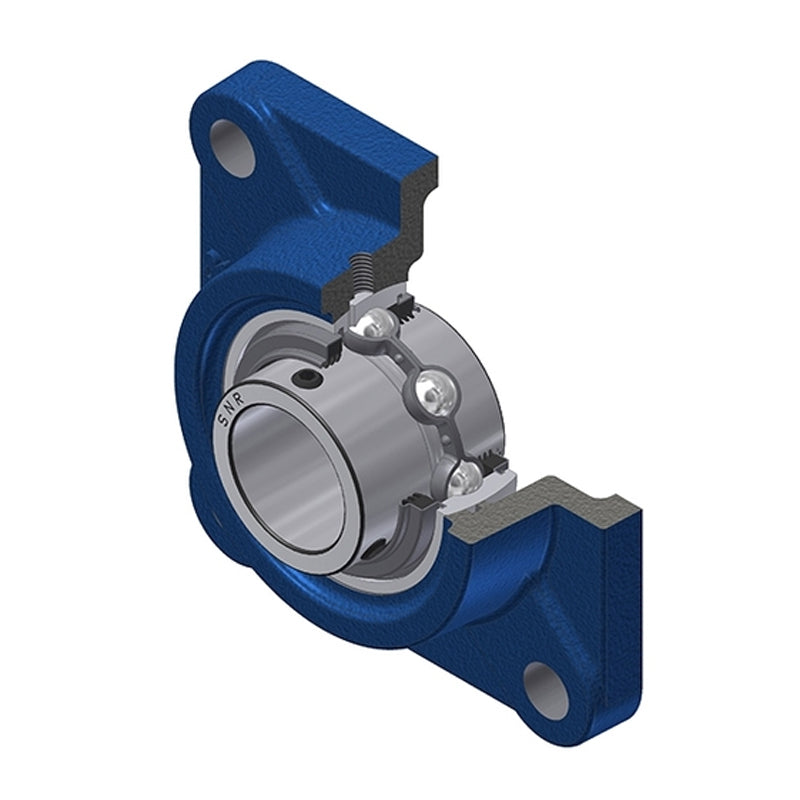

• SNR UCF211-35L3 Imperial Four Bolt Square Cast Iron Flange Housing with 2-3/16 inch Bore Insert with Triple Lip Seal - Allow 2-3 Days
1 1

SKU: UCF211-35L3-SNR

SNR UCF211-35L3 Imperial Four Bolt Square Cast Iron Flange Housing with 2-3/16 inch Bore Insert with Triple Lip Seal - Allow 2-3 Days

SNR UCF211-35L3 Imperial Four Bolt Square Cast Iron Flange Housing with 2-3/16 inch Bore Insert with Triple Lip Seal - Allow 2-3 Days
$132.46 ex VAT
$132.46 ex VAT
Sale Sold out

In stock

Price Break
3+ $98.68
4+ $94.70
9+ $92.70
19+ $89.71
49+ $87.72
99+ $82.73
499+ $69.78
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
SNR - High Quality
Inside Diameter:
55.56mm = 2.187 (2-3/16) inch
Style:
UCF
Bolt Hole Centres:
130mm
Technical
--- Dimensions
Shaft diameter d 2-3/16 inch
A 43mm
A1 18mm
A2 58.4mm
B 55.6mm
e 25mm
J 130mm
L 162mm
N 19mm
S 22.2mm
G M6x1
--- Load rating
Dynamic load C 43.55 kN
Static load C0 29.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 16.8 Nm
Mass 3.29 kg
