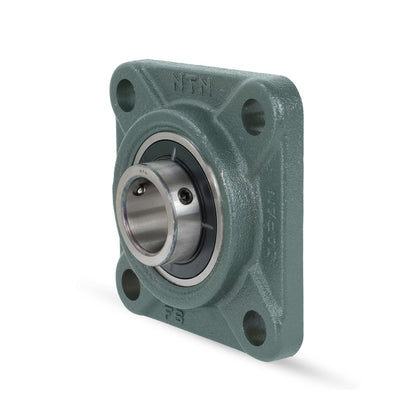

• NTN UCF212D1 Metric Four Bolt Square Cast Iron Flange Housing with 60mm Bore Insert - Allow 2-3 Days
  • NTN
1 2

SKU: UCF212D1-NTN

NTN UCF212D1 Metric Four Bolt Square Cast Iron Flange Housing with 60mm Bore Insert - Allow 2-3 Days

NTN UCF212D1 Metric Four Bolt Square Cast Iron Flange Housing with 60mm Bore Insert - Allow 2-3 Days
$84.65 ex VAT
$84.65 ex VAT
Sale Sold out

In stock

Price Break
3+ $56.70
4+ $53.52
9+ $52.88
19+ $52.24
49+ $51.61
99+ $50.97
499+ $47.78
999+ $47.15
1999+ $46.51
2999+ $45.87
4999+ $44.60

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
60mm
Style:
UCF
Bolt Hole Centres:
143mm
Technical
--- Dimensions
Shaft diameter 60mm
L 175mm
J 143mm
A<sub>2</sub> 29mm
A<sub>1</sub> 18mm
A 48mm
N 19mm
A<sub>0</sub> 68.7mm
B 65.1mm
S 25.4mm
Fixing bolt M16
--- Load rating
Dynamic load C<sub>r</sub> 58 kN
Static load C<sub>0r</sub> 36 kN
Fatigue load limit C<sub>u</sub> 2.83 kN
--- Unit information
Mass 3.9 kg
