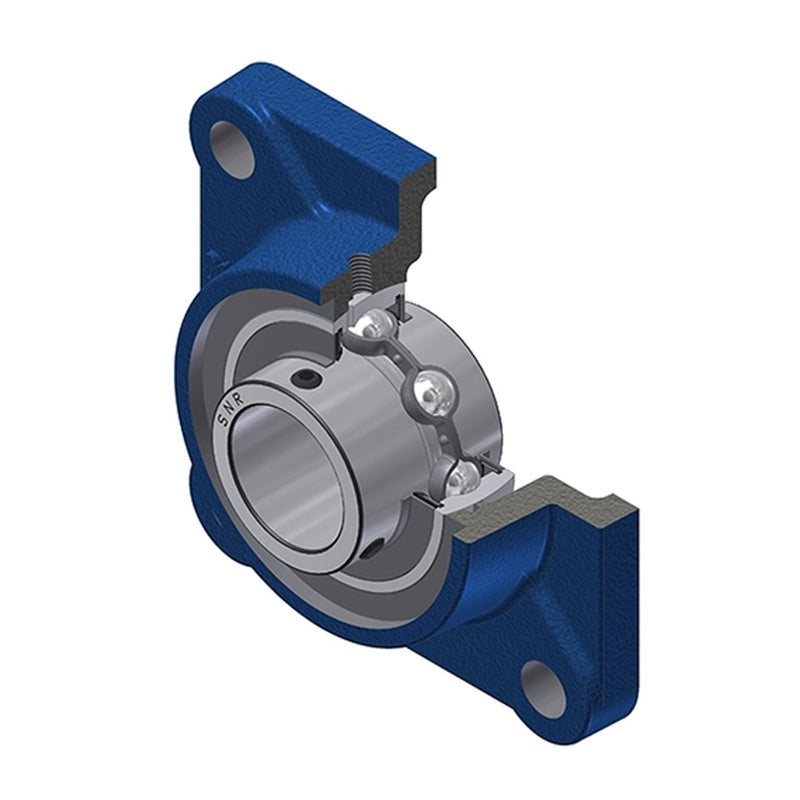

• SNR UCF212N Metric Four Bolt Square Cast Iron Flange Housing with 60mm Bore Insert - Allow 2-3 Days
  • SNR
1 2

SKU: UCF212N-SNR

SNR UCF212N Metric Four Bolt Square Cast Iron Flange Housing with 60mm Bore Insert - Allow 2-3 Days

SNR UCF212N Metric Four Bolt Square Cast Iron Flange Housing with 60mm Bore Insert - Allow 2-3 Days
$92.65 ex VAT
$92.65 ex VAT
Sale Sold out

In stock

Price Break
3+ $62.06
4+ $58.57
9+ $57.87
19+ $57.18
49+ $56.48
99+ $55.78
499+ $52.30
999+ $51.60
1999+ $50.90
2999+ $50.20
4999+ $48.81

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
60mm
Style:
UCF
Bolt Hole Centres:
143mm
Technical

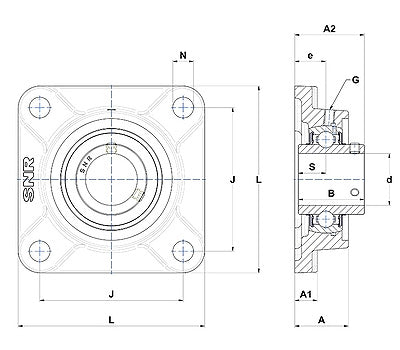

--- Dimensions
Shaft diameter d 60mm
A 48mm
A1 18mm
A2 68.7mm
B 65.1mm
e 29mm
J 143mm
L 175mm
N 19mm
S 25.4mm
G M6x1
--- Load rating
Dynamic load C 52.5 kN
Static load C0 32.8 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 22 Nm
Mass 4.36 kg
