• SNR UCF212T04 Metric Four Bolt Square Cast Iron Flange Housing with 60mm Bore Insert Low Temperature Version - Allow 2-3 Days
1 1

SKU: UCF212T04-SNR

SNR UCF212T04 Metric Four Bolt Square Cast Iron Flange Housing with 60mm Bore Insert Low Temperature Version - Allow 2-3 Days

SNR UCF212T04 Metric Four Bolt Square Cast Iron Flange Housing with 60mm Bore Insert Low Temperature Version - Allow 2-3 Days
$265.19 ex VAT
$265.19 ex VAT
Sale Sold out

In stock

Price Break
3+ $197.56
4+ $189.58
9+ $185.59
19+ $179.60
49+ $175.61
99+ $165.63
499+ $139.69
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

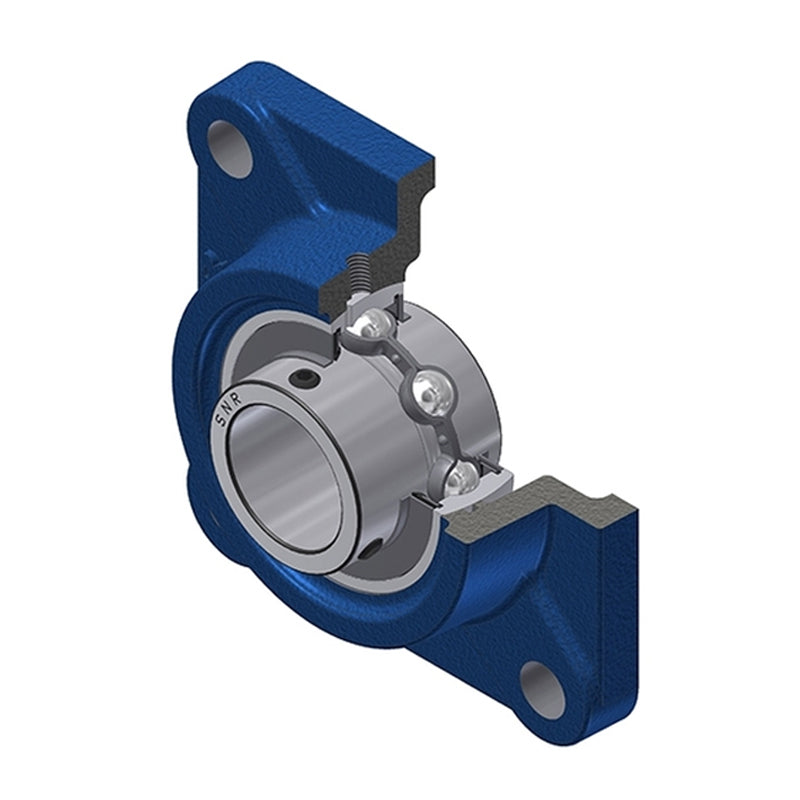

UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
SNR - High Quality
Inside Diameter:
60mm
Style:
UCF
Bolt Hole Centres:
143mm
Technical
--- Dimensions
Shaft diameter d 60mm
A 48mm
A1 18mm
A2 68.7mm
B 65.1mm
e 29mm
J 143mm
L 175mm
N 19mm
S 25.4mm
G M6x1
--- Load rating
Dynamic load C 52.5 kN
Static load C0 32.8 kN
--- Unit information
Operating temperature min. -40°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 22 Nm
Mass 4.36 kg
