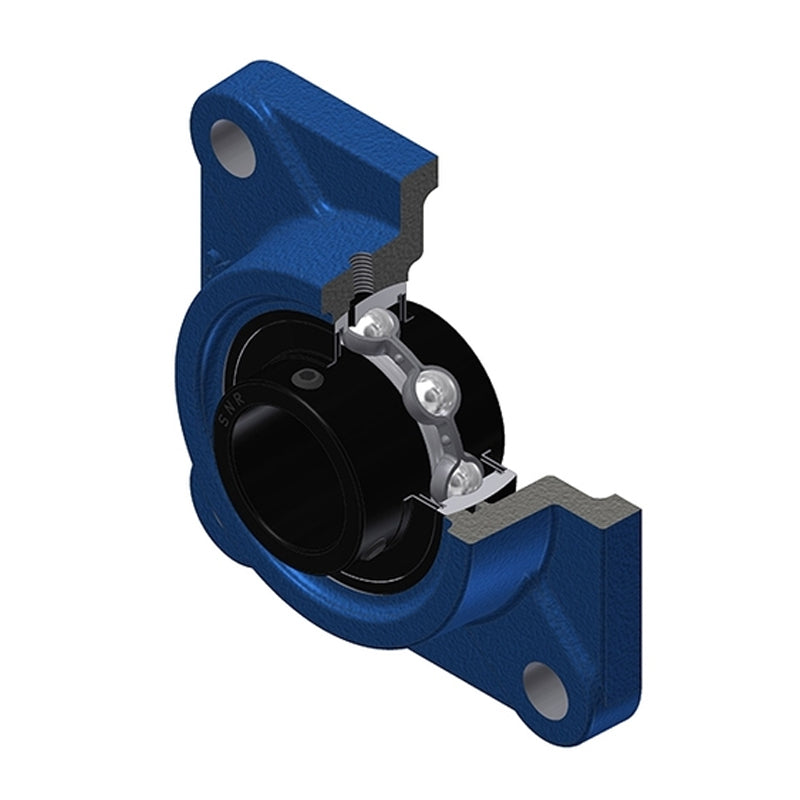

• SNR UCF214T20 Metric Four Bolt Square Cast Iron Flange Housing with 70mm Bore Insert Wide Temperature Version - Allow 2-3 Days
1 1

SKU: UCF214T20-SNR

SNR UCF214T20 Metric Four Bolt Square Cast Iron Flange Housing with 70mm Bore Insert Wide Temperature Version - Allow 2-3 Days

SNR UCF214T20 Metric Four Bolt Square Cast Iron Flange Housing with 70mm Bore Insert Wide Temperature Version - Allow 2-3 Days
$412.38 ex VAT
$412.38 ex VAT
Sale Sold out

In stock

Price Break
3+ $307.22
4+ $294.80
9+ $288.60
19+ $279.29
49+ $273.08
99+ $257.57
499+ $217.22
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
SNR - High Quality
Inside Diameter:
70mm
Style:
UCF
Bolt Hole Centres:
152mm
Technical
--- Dimensions
Shaft diameter d 70mm
A 54mm
A1 22mm
A2 75.4mm
B 74.6mm
e 31mm
J 152mm
L 193mm
N 19mm
S 30.2mm
G M6x1
--- Load rating
Dynamic load C 62 kN
Static load C0 45 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 200°C
Recommended tightening torque for set screw 33 Nm
Mass 6.21 kg
