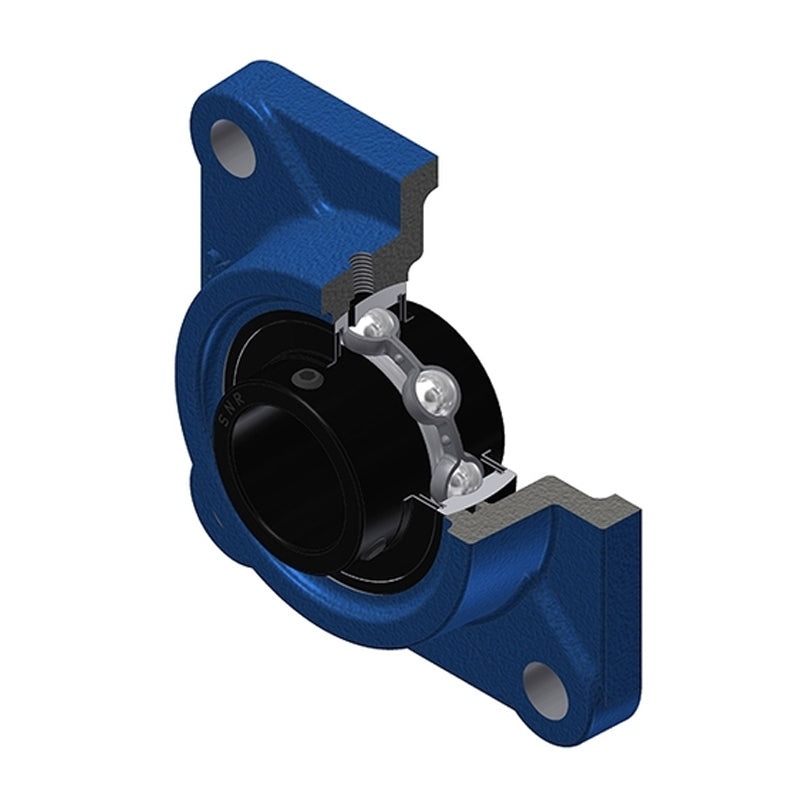

• SNR UCF216T20 Metric Four Bolt Square Cast Iron Flange Housing with 80mm Bore Insert Wide Temperature Version - Allow 2-3 Days
1 1

SKU: UCF216T20-SNR

SNR UCF216T20 Metric Four Bolt Square Cast Iron Flange Housing with 80mm Bore Insert Wide Temperature Version - Allow 2-3 Days

SNR UCF216T20 Metric Four Bolt Square Cast Iron Flange Housing with 80mm Bore Insert Wide Temperature Version - Allow 2-3 Days
$588.99 ex VAT
$588.99 ex VAT
Sale Sold out

In stock

Price Break
3+ $438.79
4+ $421.06
9+ $412.19
19+ $398.90
49+ $390.03
99+ $367.87
499+ $310.25
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
SNR - High Quality
Inside Diameter:
80mm
Style:
UCF
Bolt Hole Centres:
165mm
Technical
--- Dimensions
Shaft diameter d 80mm
A 57mm
A1 22mm
A2 83.3mm
B 82.6mm
e 34mm
J 165mm
L 208mm
N 23mm
S 33.3mm
G M10x1
--- Load rating
Dynamic load C 72.5 kN
Static load C0 54.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 200°C
Recommended tightening torque for set screw 33 Nm
Mass 6.86 kg
