SKU: UCF306-17
UCF306-17 Imperial Four Bolt Square Cast Iron Flange Housing with 1-1/16 inch Bore Insert - Allow 2-3 Days
UCF306-17 Imperial Four Bolt Square Cast Iron Flange Housing with 1-1/16 inch Bore Insert - Allow 2-3 Days
Regular price
$35.31
ex VAT
Regular price
Sale price
$35.31
ex VAT
In stock
Price Break
3+
$26.30
4+
$25.24
9+
$24.71
19+
$23.91
49+
$23.38
99+
$22.05
499+
$18.60
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 26.99mm = 1.063 (1-1/16) inch
- Style:
- UCF
- Bolt Hole Centres:
- 95mm

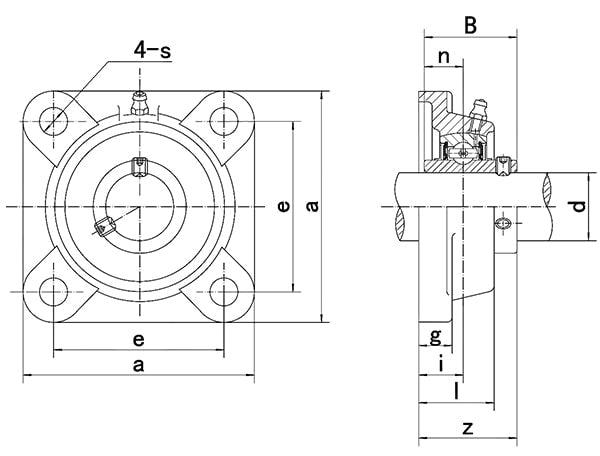

Technical
Technical
| d | 1-1/16 inch |
|---|---|
| a | 125mm |
| e | 95mm |
| i | 18mm |
| g | 15mm |
| l | 32mm |
| s | 16mm |
| z | 44mm |
| B | 43mm |
| n | 17mm |
| Bolt size | M14 |
| Bearing no. | UC306-17 |
| Housing no. | F306 |
| Weight | 1.5 kg |
