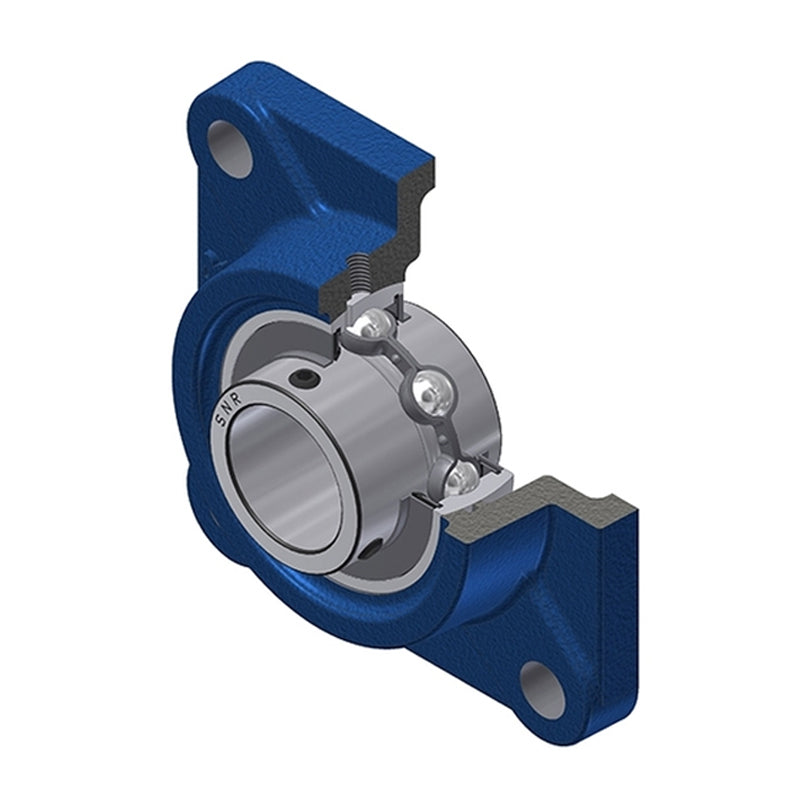

• SNR UCF306 Metric Four Bolt Square Cast Iron Flange Housing with 30mm Bore Insert - Allow 2-3 Days
  • SNR
1 2

SKU: UCF306-SNR

SNR UCF306 Metric Four Bolt Square Cast Iron Flange Housing with 30mm Bore Insert - Allow 2-3 Days

SNR UCF306 Metric Four Bolt Square Cast Iron Flange Housing with 30mm Bore Insert - Allow 2-3 Days
$61.48 ex VAT
$61.48 ex VAT
Sale Sold out

In stock

Price Break
3+ $41.18
4+ $38.86
9+ $38.40
19+ $37.94
49+ $37.48
99+ $37.01
499+ $34.70
999+ $34.24
1999+ $33.78
2999+ $33.31
4999+ $32.39

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
30mm
Style:
UCF
Bolt Hole Centres:
95mm
Technical
--- Dimensions
Shaft diameter d 30mm
A 32mm
A1 15mm
A2 44mm
B 43mm
e 18mm
J 95mm
L 125mm
N 16mm
S 17mm
G M6x1
--- Load rating
Dynamic load C 27 kN
Static load C0 15.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 5.5 Nm
Mass 1.58 kg
