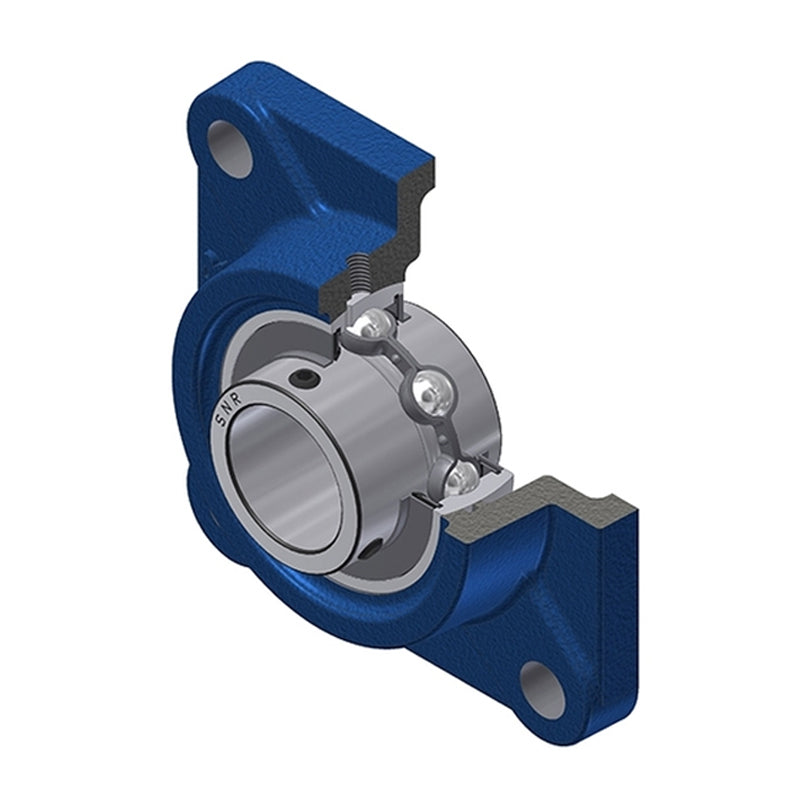

• SNR UCF307 Metric Four Bolt Square Cast Iron Flange Housing with 35mm Bore Insert - Allow 2-3 Days
  • SNR
1 2

SKU: UCF307-SNR

SNR UCF307 Metric Four Bolt Square Cast Iron Flange Housing with 35mm Bore Insert - Allow 2-3 Days

SNR UCF307 Metric Four Bolt Square Cast Iron Flange Housing with 35mm Bore Insert - Allow 2-3 Days
$74.29 ex VAT
$74.29 ex VAT
Sale Sold out

In stock

Price Break
3+ $49.76
4+ $46.96
9+ $46.40
19+ $45.84
49+ $45.28
99+ $44.73
499+ $41.93
999+ $41.37
1999+ $40.81
2999+ $40.25
4999+ $39.13

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
35mm
Style:
UCF
Bolt Hole Centres:
100mm
Technical
--- Dimensions
Shaft diameter d 35mm
A 36mm
A1 16mm
A2 49mm
B 48mm
e 20mm
J 100mm
L 135mm
N 19mm
S 19mm
G M6x1
--- Load rating
Dynamic load C 33.5 kN
Static load C0 19.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 1.97 kg
