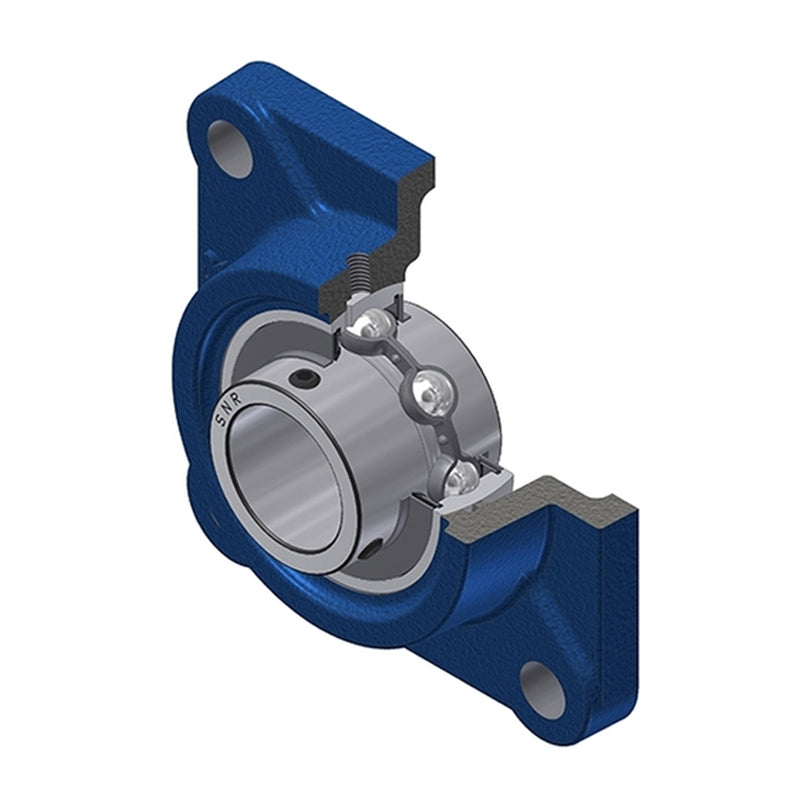

• SNR UCF313 Metric Four Bolt Square Cast Iron Flange Housing with 65mm Bore Insert - Allow 2-3 Days
  • SNR
1 2

SKU: UCF313-SNR

SNR UCF313 Metric Four Bolt Square Cast Iron Flange Housing with 65mm Bore Insert - Allow 2-3 Days

SNR UCF313 Metric Four Bolt Square Cast Iron Flange Housing with 65mm Bore Insert - Allow 2-3 Days
$181.45 ex VAT
$181.45 ex VAT
Sale Sold out

In stock

Price Break
3+ $121.54
4+ $114.71
9+ $113.34
19+ $111.98
49+ $110.61
99+ $109.25
499+ $102.42
999+ $101.05
1999+ $99.69
2999+ $98.32
4999+ $95.59

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
65mm
Style:
UCF
Bolt Hole Centres:
166mm
Technical
--- Dimensions
Shaft diameter d 65mm
A 58mm
A1 22mm
A2 78mm
B 75mm
e 33mm
J 166mm
L 208mm
N 23mm
S 30mm
G M6x1
--- Load rating
Dynamic load C 93.86 kN
Static load C0 60.5 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 33 Nm
Mass 7.86 kg
