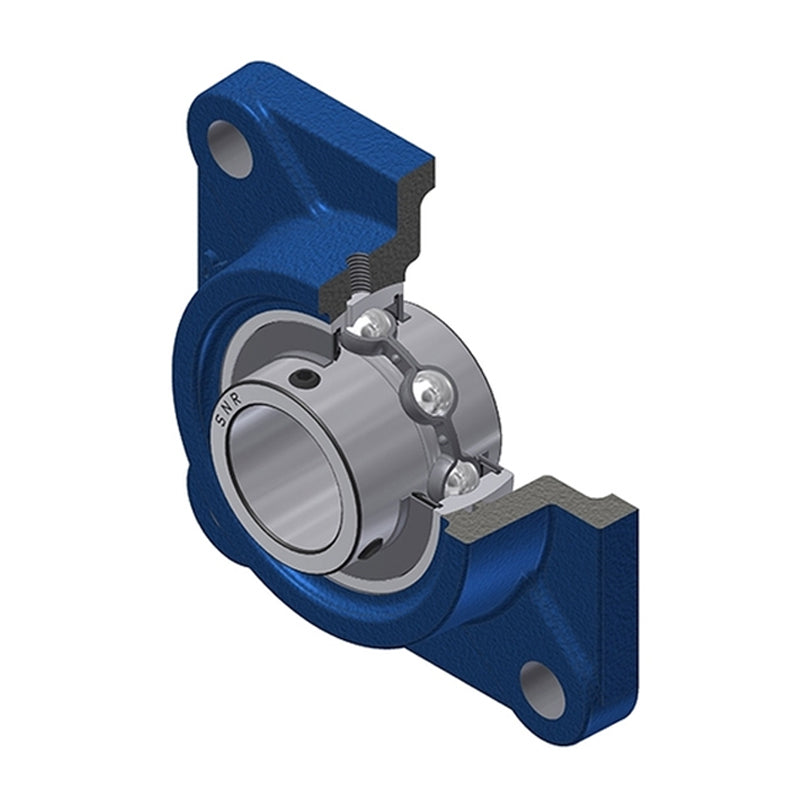

• SNR UCF315 Metric Four Bolt Square Cast Iron Flange Housing with 75mm Bore Insert - Allow 2-3 Days
  • SNR
1 2

SKU: UCF315-SNR

SNR UCF315 Metric Four Bolt Square Cast Iron Flange Housing with 75mm Bore Insert - Allow 2-3 Days

SNR UCF315 Metric Four Bolt Square Cast Iron Flange Housing with 75mm Bore Insert - Allow 2-3 Days
$247.60 ex VAT
$247.60 ex VAT
Sale Sold out

In stock

Price Break
3+ $165.86
4+ $156.54
9+ $154.67
19+ $152.81
49+ $150.95
99+ $149.08
499+ $139.77
999+ $137.90
1999+ $136.04
2999+ $134.17
4999+ $130.45

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
75mm
Style:
UCF
Bolt Hole Centres:
184mm
Technical
--- Dimensions
Shaft diameter d 75mm
A 66mm
A1 25mm
A2 89mm
B 82mm
e 39mm
J 184mm
L 236mm
N 25mm
S 32mm
G M10x1
--- Load rating
Dynamic load C 113.36 kN
Static load C0 76.8 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 42 Nm
Mass 10.28 kg
