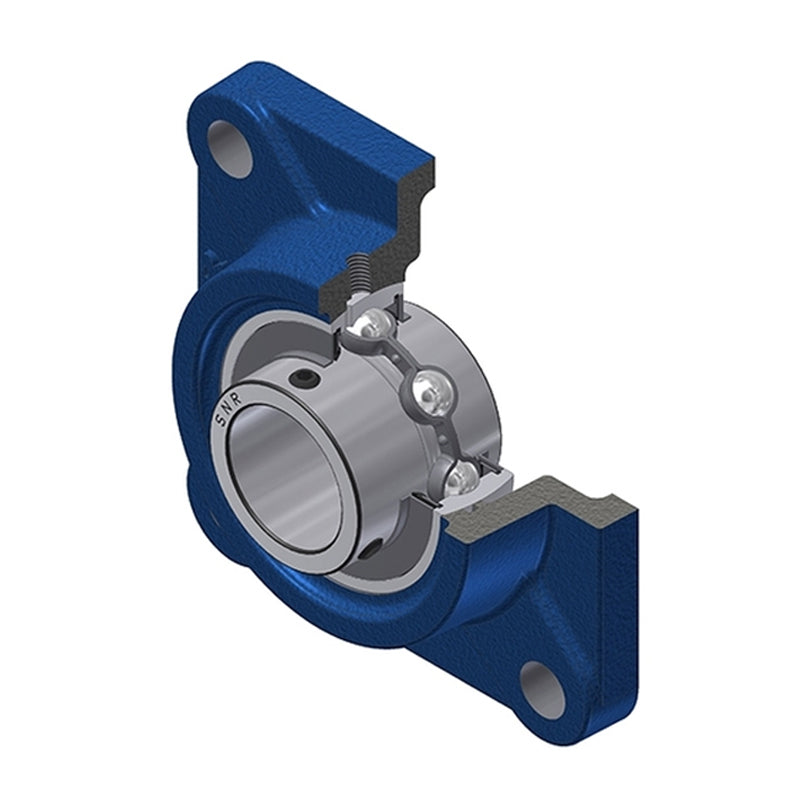

• SNR UCF318 Metric Four Bolt Square Cast Iron Flange Housing with 90mm Bore Insert - Allow 2-3 Days
  • SNR
1 2

SKU: UCF318-SNR

SNR UCF318 Metric Four Bolt Square Cast Iron Flange Housing with 90mm Bore Insert - Allow 2-3 Days

SNR UCF318 Metric Four Bolt Square Cast Iron Flange Housing with 90mm Bore Insert - Allow 2-3 Days
$377.60 ex VAT
$377.60 ex VAT
Sale Sold out

In stock

Price Break
3+ $252.93
4+ $238.72
9+ $235.88
19+ $233.04
49+ $230.20
99+ $227.35
499+ $213.14
999+ $210.30
1999+ $207.46
2999+ $204.62
4999+ $198.93

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
90mm
Style:
UCF
Bolt Hole Centres:
216mm
Technical
--- Dimensions
Shaft diameter d 90mm
A 76mm
A1 30mm
A2 100mm
B 96mm
e 44mm
J 216mm
L 280mm
N 35mm
S 40mm
G M10x1
--- Load rating
Dynamic load C 143 kN
Static load C0 108 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 64 Nm
Mass 17.93 kg
