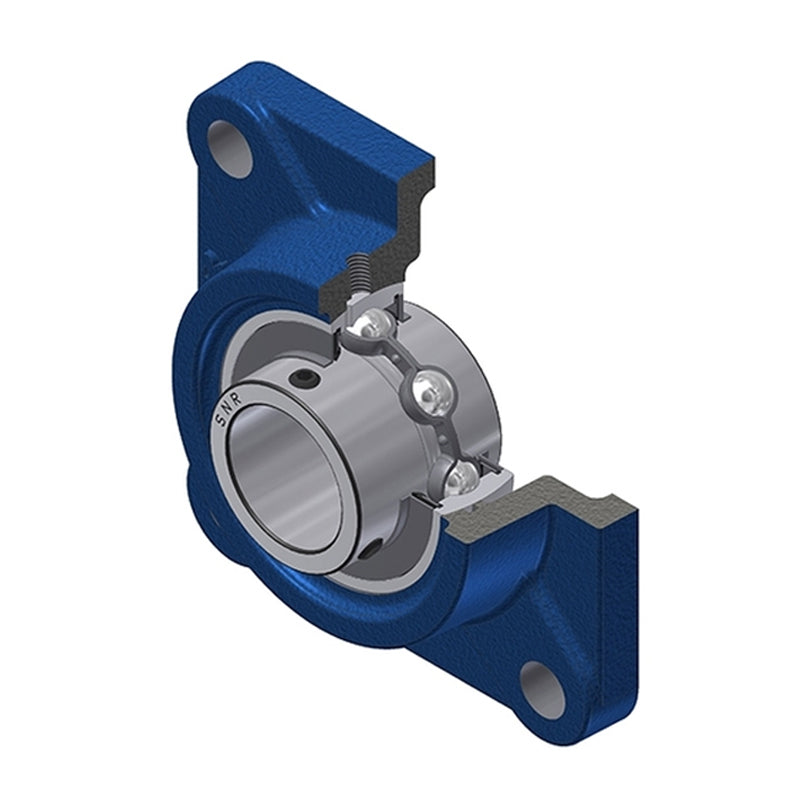

• SNR UCF319 Metric Four Bolt Square Cast Iron Flange Housing with 95mm Bore Insert - Allow 2-3 Days
  • SNR
1 2

SKU: UCF319-SNR

SNR UCF319 Metric Four Bolt Square Cast Iron Flange Housing with 95mm Bore Insert - Allow 2-3 Days

SNR UCF319 Metric Four Bolt Square Cast Iron Flange Housing with 95mm Bore Insert - Allow 2-3 Days
$422.35 ex VAT
$422.35 ex VAT
Sale Sold out

In stock

Price Break
3+ $282.91
4+ $267.01
9+ $263.83
19+ $260.66
49+ $257.48
99+ $254.30
499+ $238.40
999+ $235.23
1999+ $232.05
2999+ $228.87
4999+ $222.51

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
95mm
Style:
UCF
Bolt Hole Centres:
228mm
Technical
--- Dimensions
Shaft diameter d 95mm
A 94mm
A1 30mm
A2 121mm
B 103mm
e 59mm
J 228mm
L 290mm
N 35mm
S 41mm
G M10x1
--- Load rating
Dynamic load C 156 kN
Static load C0 122 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 64 Nm
Mass 21.16 kg
