• NTN UCF320D1 Metric Four Bolt Square Cast Iron Flange Housing with 100mm Bore Insert - Allow 2-3 Days
  • NTN
1 2

SKU: UCF320D1-NTN

NTN UCF320D1 Metric Four Bolt Square Cast Iron Flange Housing with 100mm Bore Insert - Allow 2-3 Days

NTN UCF320D1 Metric Four Bolt Square Cast Iron Flange Housing with 100mm Bore Insert - Allow 2-3 Days
$519.16 ex VAT
$519.16 ex VAT
Sale Sold out

In stock

Price Break
3+ $347.75
4+ $328.21
9+ $324.31
19+ $320.40
49+ $316.49
99+ $312.58
499+ $293.05
999+ $289.14
1999+ $285.23
2999+ $281.33
4999+ $273.51

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
100mm
Style:
UCF
Bolt Hole Centres:
242mm
Technical

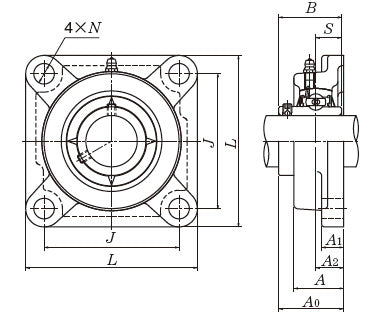

--- Dimensions
Shaft diameter 100mm
L 310mm
J 242mm
A<sub>2</sub> 59mm
A<sub>1</sub> 32mm
A 94mm
N 38mm
A<sub>0</sub> 125mm
B 108mm
S 42mm
Fixing bolt M33
--- Load rating
Dynamic load C<sub>r</sub> 192 kN
Static load C<sub>0r</sub> 141 kN
Fatigue load limit C<sub>u</sub> 8.75 kN
--- Unit information
Mass 27 kg
