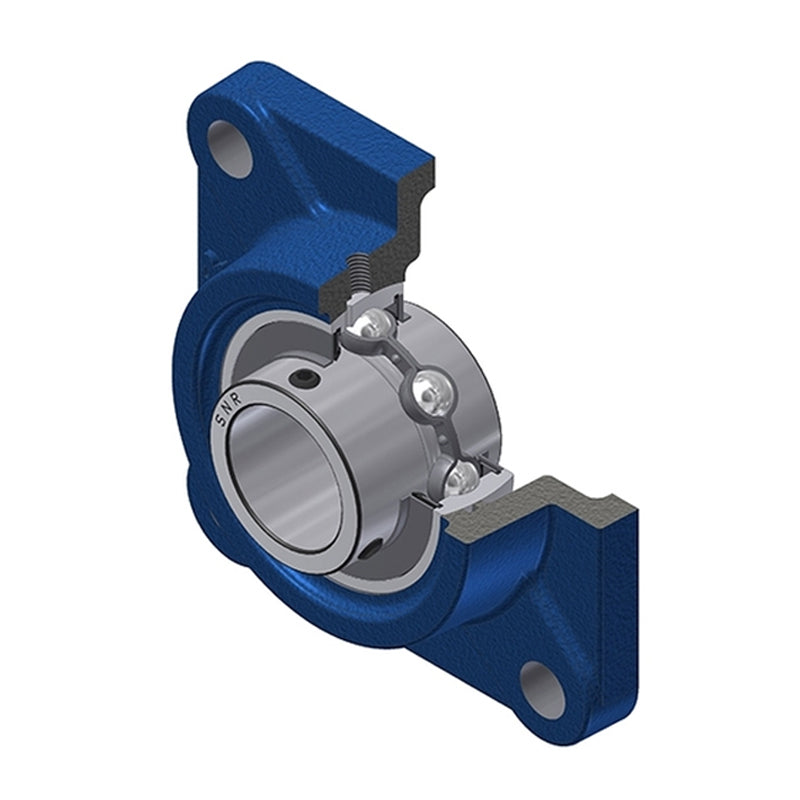

• SNR UCF328 Metric Four Bolt Square Cast Iron Flange Housing with 140mm Bore Insert - Allow 2-3 Days
  • SNR
1 2

SKU: UCF328-SNR

SNR UCF328 Metric Four Bolt Square Cast Iron Flange Housing with 140mm Bore Insert - Allow 2-3 Days

SNR UCF328 Metric Four Bolt Square Cast Iron Flange Housing with 140mm Bore Insert - Allow 2-3 Days
$1,490.20 ex VAT
$1,490.20 ex VAT
Sale Sold out

In stock

Price Break
3+ $998.18
4+ $942.10
9+ $930.89
19+ $919.67
49+ $908.46
99+ $897.24
499+ $841.16
999+ $829.95
1999+ $818.73
2999+ $807.52
4999+ $785.09

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
140mm
Style:
UCF
Bolt Hole Centres:
350mm
Technical
--- Dimensions
Shaft diameter d 140mm
A 125mm
A1 55mm
A2 161mm
B 145mm
e 75mm
J 350mm
L 450mm
N 41mm
S 59mm
G M10x1
--- Load rating
Dynamic load C 275 kN
Static load C0 272 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 120 Nm
Mass 83.88 kg
