SKU: UCFA204-SNR

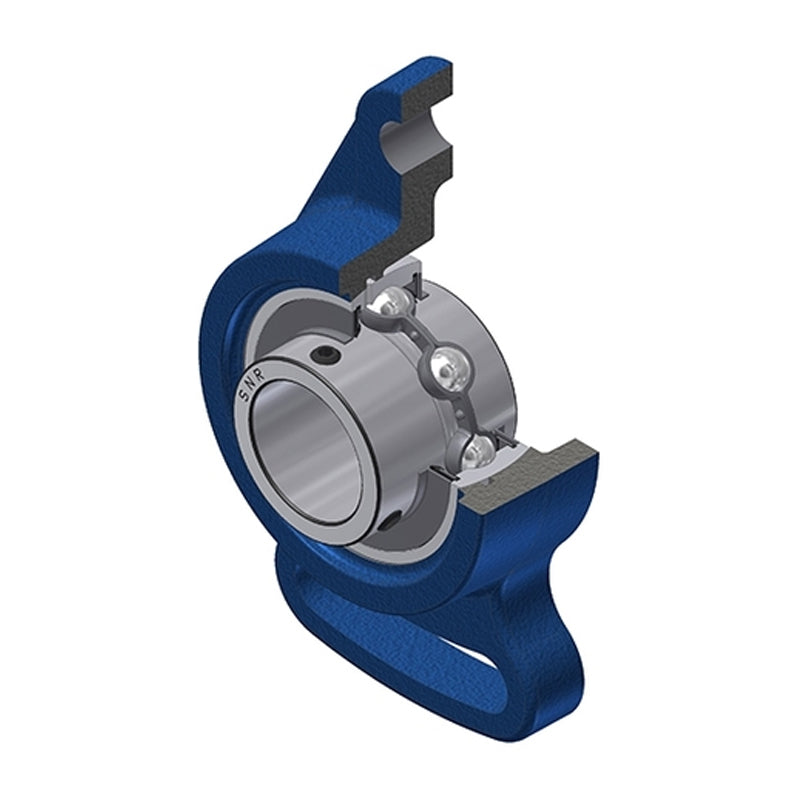

SNR UCFA204 Metric Cast Iron Adjustable Flange Unit with 20mm Insert - Allow 2-3 Days

Name: SNR UCFA204 Metric Cast Iron Adjustable Flange Unit with 20mm Insert - Allow 2-3 Days
Brand: SNR
SKU: UCFA204-SNR
Price: 31.30 USD
Availability: InStock

$31.30 ex VAT

Sale Sold out

In stock

Price Break

3+ $20.97

4+ $19.79

9+ $19.56

19+ $19.32

49+ $19.09

99+ $18.85

499+ $17.67

999+ $17.44

1999+ $17.20

2999+ $16.96

4999+ $16.49

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: SNR - High Quality
Inside Diameter:: 20mm
Style:: UCFA
Bolt Hole Centres:: 78mm

Technical

---	Dimensions
Shaft diameter d	20mm
A	25.5mm
A1	12mm
A2	33.3mm
B	31mm
e	15mm
H	102mm
J	78mm
J1	40mm
L	60mm
L1	54mm
N	10mm
S	12.7mm
G	M6x1
---	Load rating
Dynamic load C	12.8 kN
Static load C0	6.65 kN
---	Unit information
Operating temperature min.	-20°C
Operating temperature max.	100°C
Recommended tightening torque for set screw	5.5 Nm
Mass	0.47 kg
