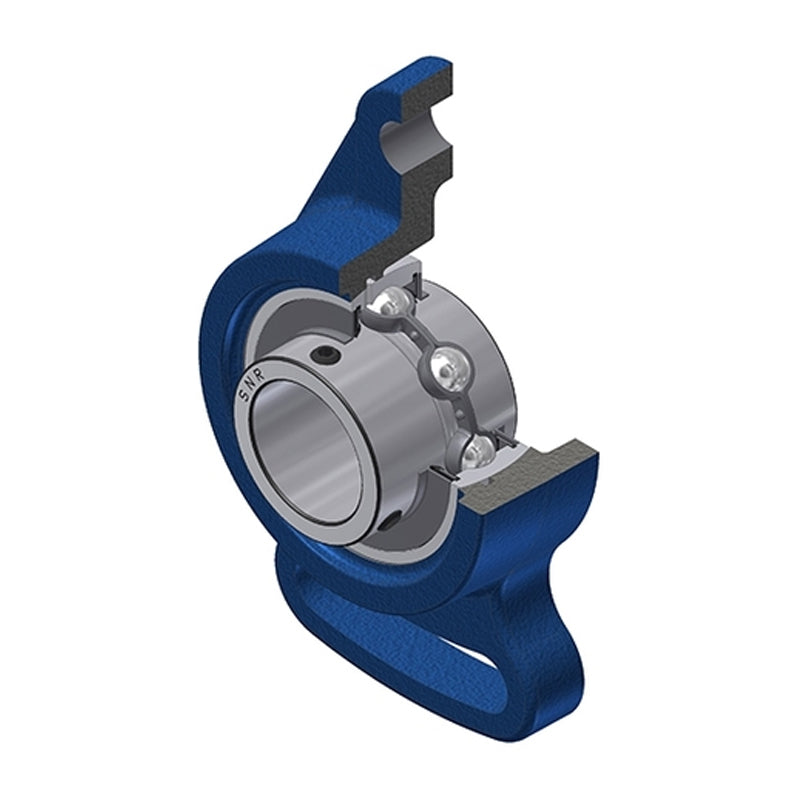

• SNR UCFA205 Metric Cast Iron Adjustable Flange Unit with 25mm Insert - Allow 2-3 Days
  • SNR
1 2

SKU: UCFA205-SNR

SNR UCFA205 Metric Cast Iron Adjustable Flange Unit with 25mm Insert - Allow 2-3 Days

SNR UCFA205 Metric Cast Iron Adjustable Flange Unit with 25mm Insert - Allow 2-3 Days
$37.00 ex VAT
$37.00 ex VAT
Sale Sold out

In stock

Price Break
3+ $24.78
4+ $23.39
9+ $23.11
19+ $22.83
49+ $22.56
99+ $22.28
499+ $20.88
999+ $20.61
1999+ $20.33
2999+ $20.05
4999+ $19.49

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
25mm
Style:
UCFA
Bolt Hole Centres:
98mm
Technical

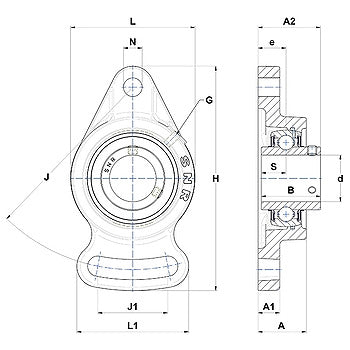

--- Dimensions
Shaft diameter d 25mm
A 27mm
A1 14mm
A2 35.7mm
B 34mm
e 16mm
H 125mm
J 98mm
J1 51mm
L 68mm
L1 65mm
N 12mm
S 14.3mm
G M6x1
--- Load rating
Dynamic load C 14 kN
Static load C0 7.88 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 5.5 Nm
Mass 0.61 kg
