SKU: UCFA207-SNR

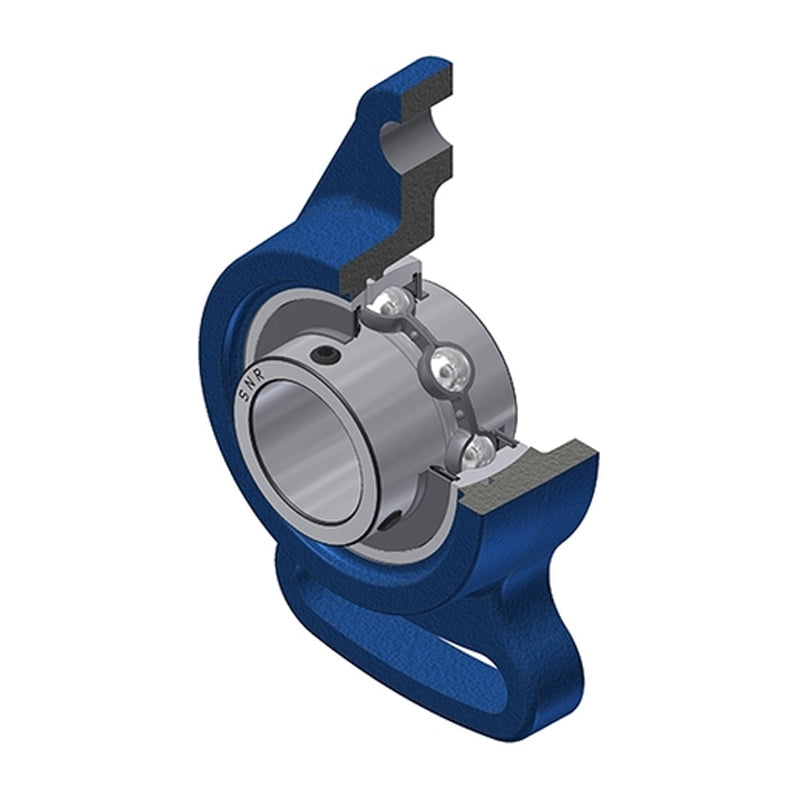

SNR UCFA207 Metric Cast Iron Adjustable Flange Unit with 35mm Insert - Allow 2-3 Days
SNR UCFA207 Metric Cast Iron Adjustable Flange Unit with 35mm Insert - Allow 2-3 Days
Regular price
$51.38
ex VAT
Regular price
Sale price
$51.38
ex VAT
In stock
Price Break
3+
$34.41
4+
$32.48
9+
$32.09
19+
$31.71
49+
$31.32
99+
$30.93
499+
$29.00
999+
$28.61
1999+
$28.23
2999+
$27.84
4999+
$27.07
Quantity
Couldn't load pickup availability
Description
Description
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 35mm
- Style:
- UCFA
- Bolt Hole Centres:
- 130mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 35mm |
| A | 34mm |
| A1 | 16mm |
| A2 | 44.4mm |
| B | 42.9mm |
| e | 19mm |
| H | 161mm |
| J | 130mm |
| J1 | 66mm |
| L | 90mm |
| L1 | 82mm |
| N | 15mm |
| S | 17.5mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 25.7 kN |
| Static load C0 | 15.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 1.27 kg |
