SKU: UCFA207N-SNR

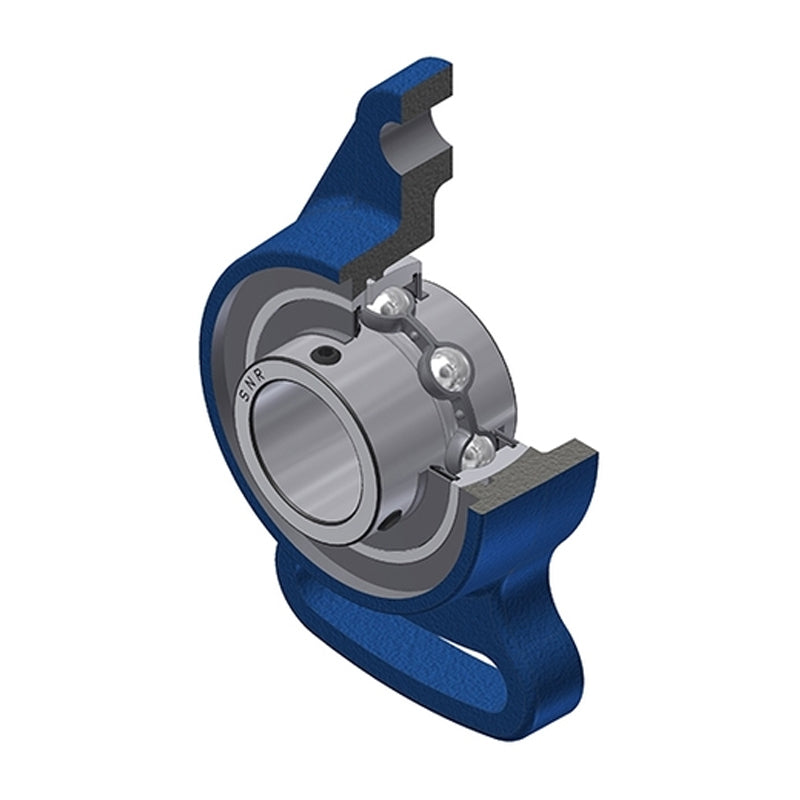

SNR UCFA207N Metric Cast Iron Adjustable Flange Unit with 35mm Insert - Allow 2-3 Days

SNR UCFA207N Metric Cast Iron Adjustable Flange Unit with 35mm Insert - Allow 2-3 Days
Regular price $73.65 ex VAT
Regular price Sale price $73.65 ex VAT
Sale Sold out

In stock

Price Break
3+ $54.87
4+ $52.65
9+ $51.54
19+ $49.88
49+ $48.77
99+ $46.00
499+ $38.79
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter d 35mm
A 34mm
A1 16mm
A2 44.4mm
B 42.9mm
e 19mm
H 161mm
J 130mm
J1 66mm
L 90mm
L1 82mm
N 15mm
S 17.5mm
G M6x1
--- Load rating
Dynamic load C 25.7 kN
Static load C0 15.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 1.27 kg
