SKU: UCFA208N-SNR

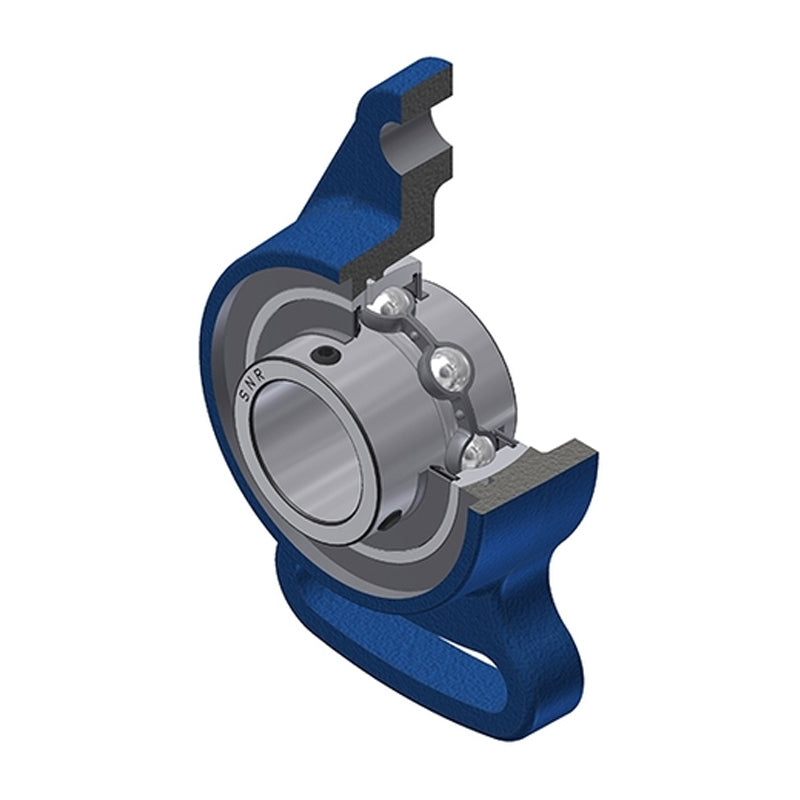

SNR UCFA208N Metric Cast Iron Adjustable Flange Unit with 40mm Insert - Allow 2-3 Days

SNR UCFA208N Metric Cast Iron Adjustable Flange Unit with 40mm Insert - Allow 2-3 Days
Regular price $73.63 ex VAT
Regular price Sale price $73.63 ex VAT
Sale Sold out

In stock

Price Break
3+ $54.86
4+ $52.64
9+ $51.53
19+ $49.87
49+ $48.76
99+ $45.99
499+ $38.79
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter d 40mm
A 36mm
A1 16mm
A2 51.2mm
B 49.2mm
e 21mm
H 175mm
J 144mm
J1 71mm
L 100mm
L1 87mm
N 15mm
S 19mm
G M6x1
--- Load rating
Dynamic load C 29.6 kN
Static load C0 18.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 1.64 kg
