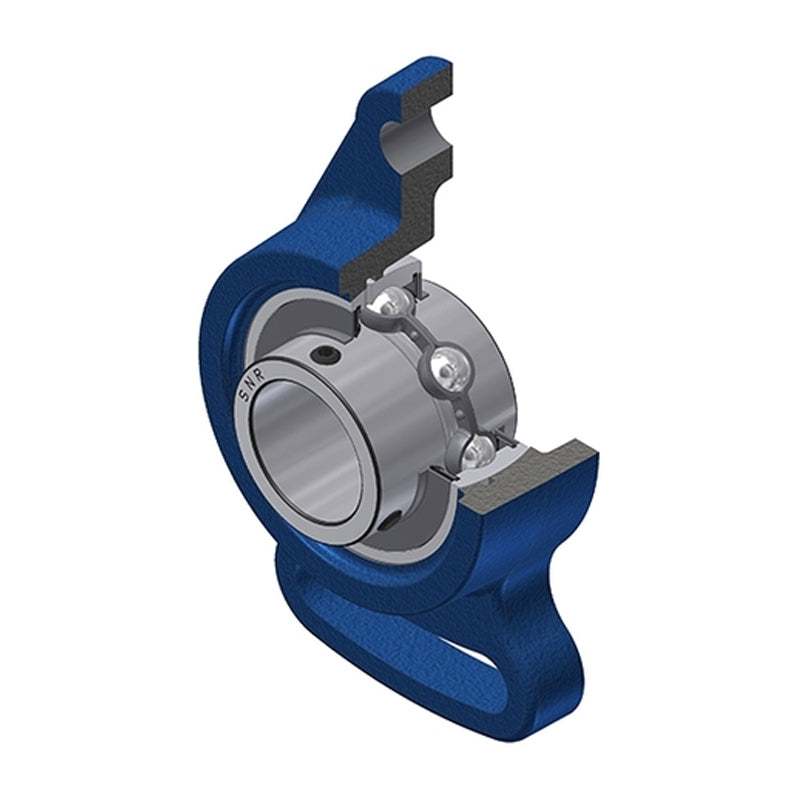

• SNR UCFA209 Metric Cast Iron Adjustable Flange Unit with 45mm Insert - Allow 2-3 Days
  • SNR
1 2

SKU: UCFA209-SNR

SNR UCFA209 Metric Cast Iron Adjustable Flange Unit with 45mm Insert - Allow 2-3 Days

SNR UCFA209 Metric Cast Iron Adjustable Flange Unit with 45mm Insert - Allow 2-3 Days
$61.48 ex VAT
$61.48 ex VAT
Sale Sold out

In stock

Price Break
3+ $41.18
4+ $38.86
9+ $38.40
19+ $37.94
49+ $37.48
99+ $37.01
499+ $34.70
999+ $34.24
1999+ $33.78
2999+ $33.31
4999+ $32.39

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
45mm
Style:
UCFA
Bolt Hole Centres:
148mm
Technical
--- Dimensions
Shaft diameter d 45mm
A 38mm
A1 18mm
A2 52.2mm
B 49.2mm
e 22mm
H 181mm
J 148mm
J1 72mm
L 108mm
L1 90mm
N 15mm
S 19mm
G M6x1
--- Load rating
Dynamic load C 31.85 kN
Static load C0 20.8 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 1.88 kg
