SKU: UCFA210N-SNR

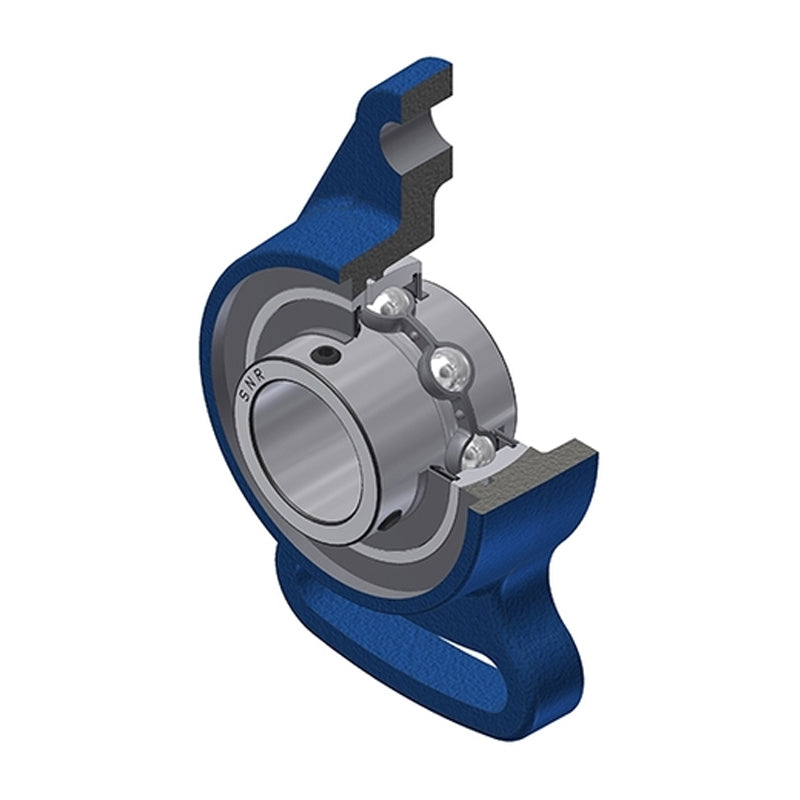

SNR UCFA210N Metric Cast Iron Adjustable Flange Unit with 50mm Insert - Allow 2-3 Days

SNR UCFA210N Metric Cast Iron Adjustable Flange Unit with 50mm Insert - Allow 2-3 Days
Regular price $103.02 ex VAT
Regular price Sale price $103.02 ex VAT
Sale Sold out

In stock

Price Break
3+ $76.74
4+ $73.64
9+ $72.09
19+ $69.77
49+ $68.22
99+ $64.34
499+ $54.26
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter d 50mm
A 40mm
A1 18mm
A2 54.6mm
B 51.6mm
e 22mm
H 190mm
J 157mm
J1 76mm
L 115mm
L1 94mm
N 15mm
S 19mm
G M6x1
--- Load rating
Dynamic load C 35.1 kN
Static load C0 23.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 22 Nm
Mass 2.2 kg
