SKU: UCFA211CC-SNR

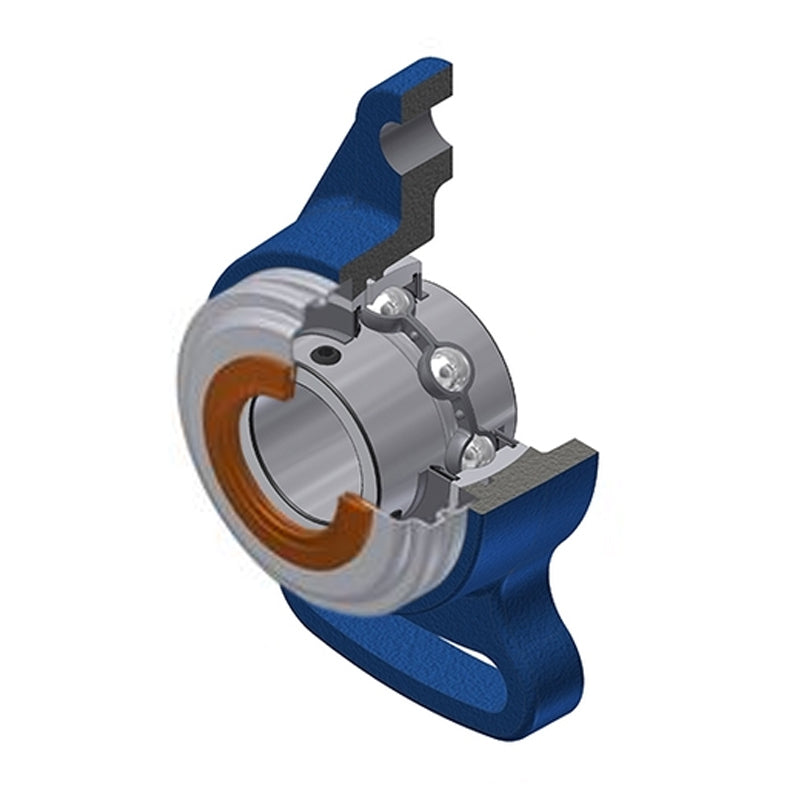

SNR UCFA211CC Metric Cast Iron Adjustable Flange Unit with 55mm Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days

SNR UCFA211CC Metric Cast Iron Adjustable Flange Unit with 55mm Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
Regular price $147.28 ex VAT
Regular price Sale price $147.28 ex VAT
Sale Sold out

In stock

Price Break
3+ $109.72
4+ $105.29
9+ $103.07
19+ $99.75
49+ $97.53
99+ $91.99
499+ $77.58
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter d 55mm
A 43mm
A1 20mm
A2 58.4mm
B 55.6mm
e 25mm
H 219mm
J 184mm
J1 86mm
L 130mm
L1 104mm
N 16mm
S 22.2mm
Dz 110mm
Z 64.4mm
G M6x1
--- Load rating
Dynamic load C 43.55 kN
Static load C0 29.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 22 Nm
Mass 3.261 kg
