SKU: UCFA212CC-SNR

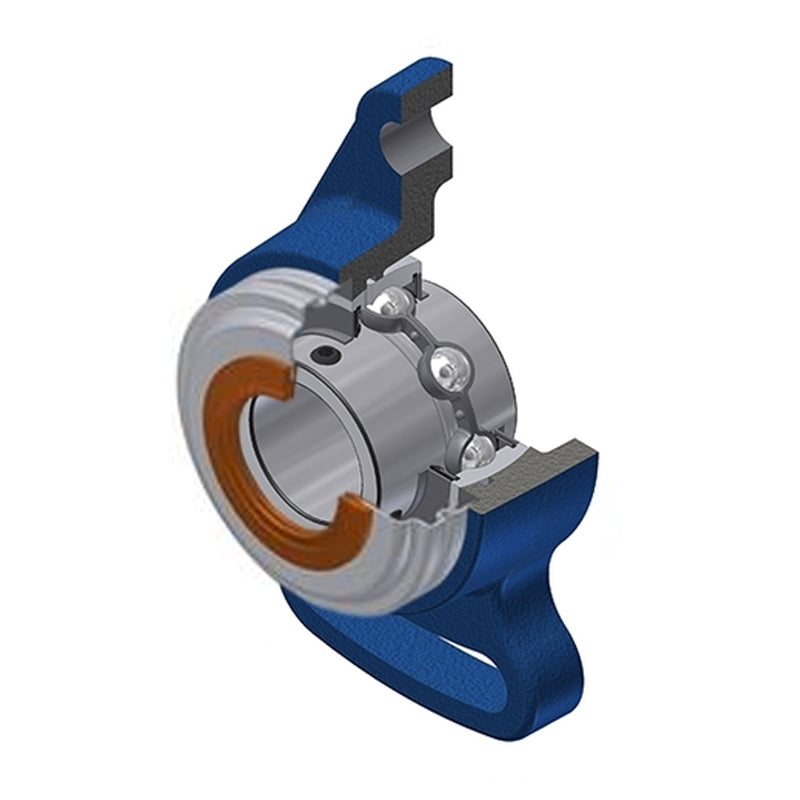

SNR UCFA212CC Metric Cast Iron Adjustable Flange Unit with 60mm Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days

SNR UCFA212CC Metric Cast Iron Adjustable Flange Unit with 60mm Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
Regular price $147.25 ex VAT
Regular price Sale price $147.25 ex VAT
Sale Sold out

In stock

Price Break
3+ $109.70
4+ $105.27
9+ $103.05
19+ $99.73
49+ $97.51
99+ $91.97
499+ $77.57
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter d 60mm
A 48mm
A1 20mm
A2 68.7mm
B 65.1mm
e 29mm
H 250mm
J 202mm
J1 92mm
L 140mm
L1 118mm
N 23mm
S 25.4mm
Dz 120mm
Z 74.4mm
G M6x1
--- Load rating
Dynamic load C 52.5 kN
Static load C0 32.8 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 22 Nm
Mass 4.407 kg
