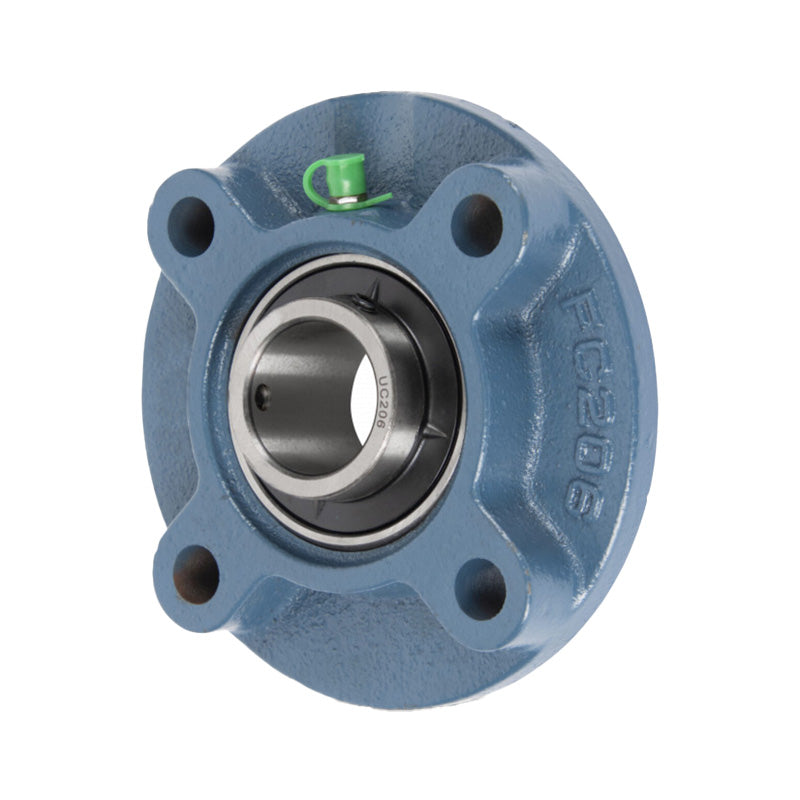

• UCFC207-22 Imperial Four Bolt Cast Iron Round Flanged Housing with 1-3/8 inch Insert
1 1

SKU: UCFC.207-22

UCFC207-22 Imperial Four Bolt Cast Iron Round Flanged Housing with 1-3/8 inch Insert

UCFC207-22 Imperial Four Bolt Cast Iron Round Flanged Housing with 1-3/8 inch Insert
$27.40 ex VAT
$27.40 ex VAT
Sale Sold out

In stock

Price Break
3+ $18.36
4+ $17.32
9+ $17.12
19+ $16.91
49+ $16.71
99+ $16.50
499+ $15.47
999+ $15.26
1999+ $15.06
2999+ $14.85
4999+ $14.44

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
34.93mm = 1.375 (1-3/8) inch
Style:
UCFC
Pitch Circle Diameter:
109.93mm = 109.93 (4-21/64) inch
Technical
d 1-3/8 inch
a 5-5/16 inch
P 4-21/64 inch
e 3-1/16 inch
i 7/16 inch
L 1-11/32 inch
s 35/64 inch
j 5/16 inch
k 11/32 inch
g 1-1/32 inch
f 3.5433 inch
z 1-7/16 inch
Bi 1.6890 inch
n 0.6890 inch
Bolt Size 7/16 inch
Weight 1.7 kg
Dynamic load 2010 kgf
Static load 1390 kgf
