SKU: UCFC.208
UCFC208 Metric Four Bolt Cast Iron Round Flanged Housing with 40mm Insert
UCFC208 Metric Four Bolt Cast Iron Round Flanged Housing with 40mm Insert
Regular price
$31.69
ex VAT
Regular price
Sale price
$31.69
ex VAT
In stock
Price Break
3+
$21.22
4+
$20.03
9+
$19.79
19+
$19.56
49+
$19.32
99+
$19.08
499+
$17.89
999+
$17.65
1999+
$17.41
2999+
$17.17
4999+
$16.69
Quantity
Couldn't load pickup availability
Description
Description
|
UCFC Series 4 Bolt Round Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication, this style has the benefit of a shouldered back face to facilitate location of the housing prior to fastening in place. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 40mm
- Style:
- UCFC
- Pitch Circle Diameter:
- 120mm

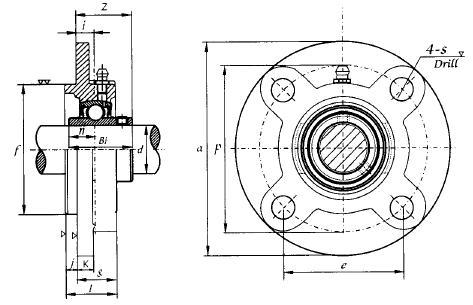

Technical
Technical
| d | 40mm |
|---|---|
| a | 145mm |
| P | 120mm |
| e | 84.8mm |
| i | 11mm |
| L | 36mm |
| s | 14mm |
| j | 10mm |
| k | 9mm |
| g | 26mm |
| f | 100mm |
| z | 41.2mm |
| Bi | 49.2mm |
| n | 19mm |
| Bolt Size | M12 |
| Weight | 2 kg |
| Dynamic load | 2560 kgf |
| Static load | 1810 kgf |
