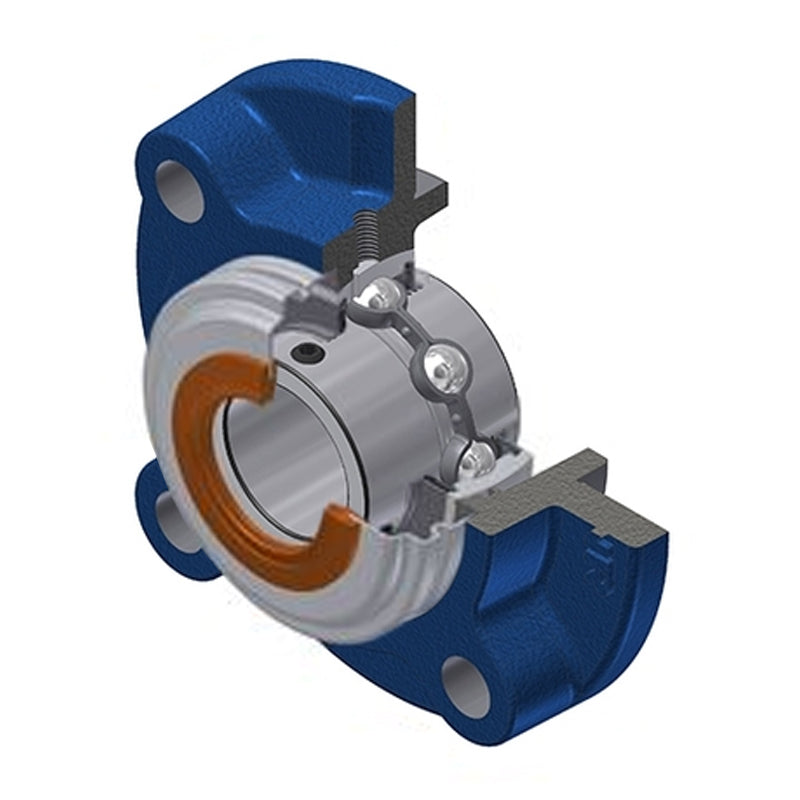

• SNR UCFC203CC Metric Four Bolt Cast Iron Round Flanged Housing with 17mm Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
1 1

SKU: UCFC203CC-SNR

SNR UCFC203CC Metric Four Bolt Cast Iron Round Flanged Housing with 17mm Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days

SNR UCFC203CC Metric Four Bolt Cast Iron Round Flanged Housing with 17mm Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
$73.57 ex VAT
$73.57 ex VAT
Sale Sold out

In stock

Price Break
3+ $54.81
4+ $52.59
9+ $51.48
19+ $49.82
49+ $48.72
99+ $45.95
499+ $38.75
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCFC Series 4 Bolt Round Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication, this style has the benefit of a shouldered back face to facilitate location of the housing prior to fastening in place. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
SNR - High Quality
Inside Diameter:
17mm
Style:
UCFC
Pitch Circle Diameter:
78mm
Technical
--- Dimensions
Shaft diameter d 17mm
A 25.5mm
A1 6mm
A2 28.3mm
A4 20.5mm
B 31mm
e 10mm
H3 62mm
J 78mm
L 100mm
N 12mm
S 12.7mm
Dz 54mm
Z 37mm
G M6x1
--- Load rating
Dynamic load C 12.8 kN
Static load C0 6.65 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 5.5 Nm
Mass 0.701 kg
