SKU: UCFC205T20-SNR

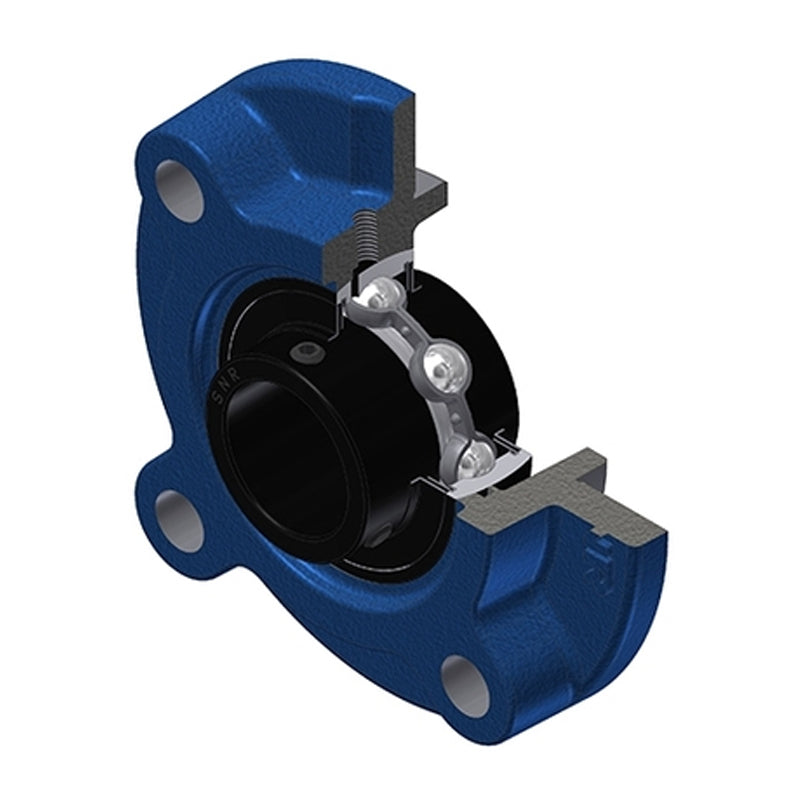

SNR UCFC205T20 Metric Four Bolt Cast Iron Round Flanged Housing with 25mm Insert Wide Temperature Version - Allow 2-3 Days
SNR UCFC205T20 Metric Four Bolt Cast Iron Round Flanged Housing with 25mm Insert Wide Temperature Version - Allow 2-3 Days
Regular price
$103.04
ex VAT
Regular price
Sale price
$103.04
ex VAT
In stock
Price Break
3+
$76.76
4+
$73.66
9+
$72.11
19+
$69.79
49+
$68.24
99+
$64.36
499+
$54.28
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Description
Description
|
UCFC Series 4 Bolt Round Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication, this style has the benefit of a shouldered back face to facilitate location of the housing prior to fastening in place. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 25mm
- Style:
- UCFC
- Pitch Circle Diameter:
- 90mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 25mm |
| A | 27mm |
| A1 | 7mm |
| A2 | 29.7mm |
| A4 | 21mm |
| B | 34mm |
| e | 10mm |
| H3 | 70mm |
| J | 90mm |
| L | 115mm |
| N | 12mm |
| S | 14.3mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 14 kN |
| Static load C0 | 7.88 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 200°C |
| Recommended tightening torque for set screw | 5.5 Nm |
| Mass | 0.97 kg |
