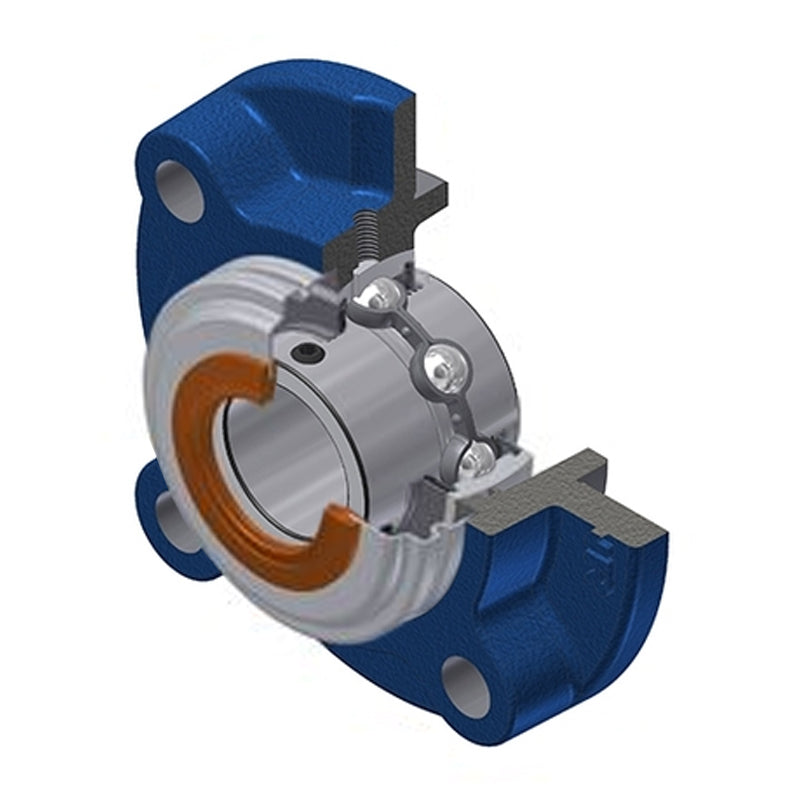

• SNR UCFC206CO Metric Four Bolt Cast Iron Round Flanged Housing with 30mm Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
  • SNR
1 2

SKU: UCFC206CO-SNR

SNR UCFC206CO Metric Four Bolt Cast Iron Round Flanged Housing with 30mm Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days

SNR UCFC206CO Metric Four Bolt Cast Iron Round Flanged Housing with 30mm Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
$61.48 ex VAT
$61.48 ex VAT
Sale Sold out

In stock

Price Break
3+ $41.18
4+ $38.86
9+ $38.40
19+ $37.94
49+ $37.48
99+ $37.01
499+ $34.70
999+ $34.24
1999+ $33.78
2999+ $33.31
4999+ $32.39

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
30mm
Style:
UCFC
Pitch Circle Diameter:
100mm
Technical

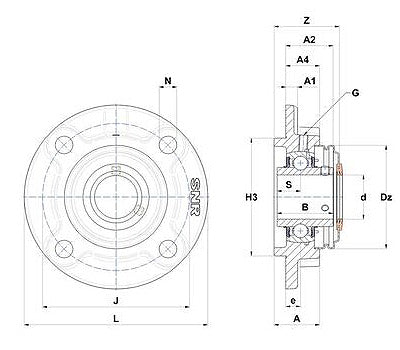

--- Dimensions
Shaft diameter d 30mm
A 31mm
A1 8mm
A2 32.2mm
A4 23mm
B 38.1mm
e 10mm
H3 80mm
J 100mm
L 125mm
N 12mm
S 15.9mm
Dz 70mm
Z 44.4mm
G M6x1
--- Load rating
Dynamic load C 19.5 kN
Static load C0 11.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 5.5 Nm
Mass 1.314 kg
