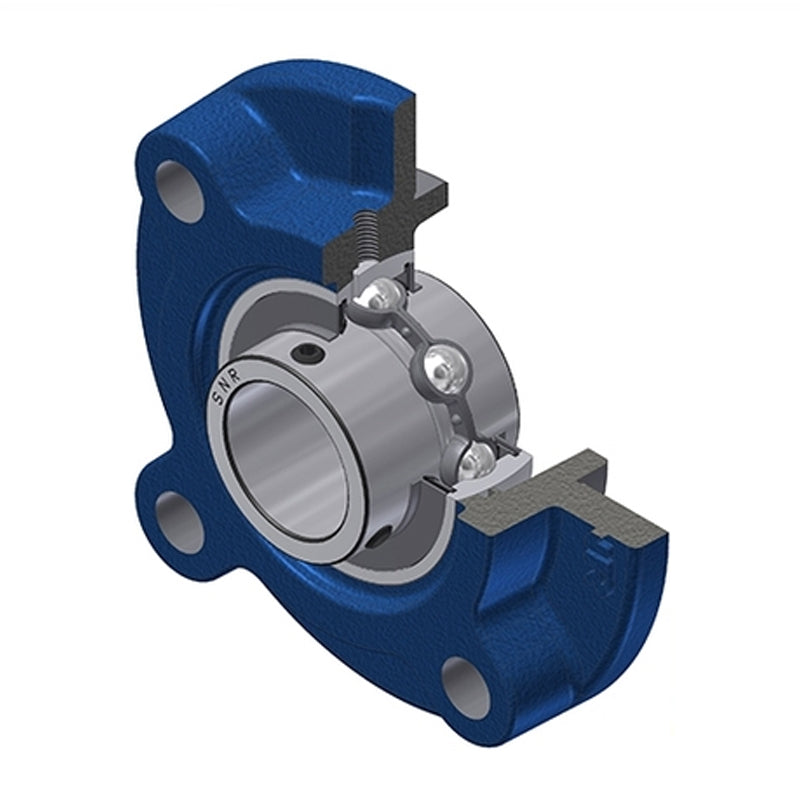

• SNR UCFC207 Metric Four Bolt Cast Iron Round Flanged Housing with 35mm Insert
  • SNR
1 2

SKU: UCFC207-SNR

SNR UCFC207 Metric Four Bolt Cast Iron Round Flanged Housing with 35mm Insert

SNR UCFC207 Metric Four Bolt Cast Iron Round Flanged Housing with 35mm Insert
$48.67 ex VAT
$48.67 ex VAT
Sale Sold out

In stock

Price Break
3+ $32.60
4+ $30.77
9+ $30.40
19+ $30.04
49+ $29.67
99+ $29.30
499+ $27.47
999+ $27.10
1999+ $26.74
2999+ $26.37
4999+ $25.64

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
35mm
Style:
UCFC
Pitch Circle Diameter:
110mm
Technical

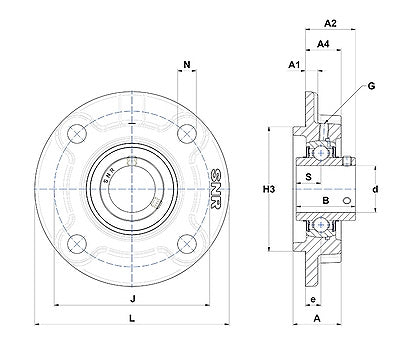

--- Dimensions
Shaft diameter d 35mm
A 34mm
A1 9mm
A2 36.4mm
A4 26mm
B 42.9mm
e 11mm
H3 90mm
J 110mm
L 135mm
N 14mm
S 17.5mm
G M6x1
--- Load rating
Dynamic load C 25.7 kN
Static load C0 15.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 1.66 kg
