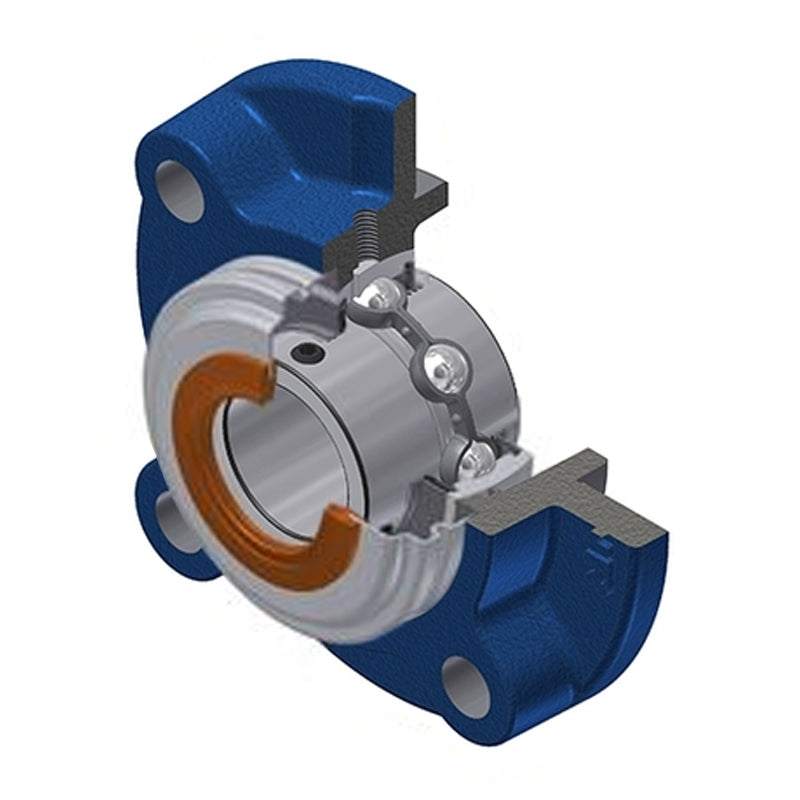

• SNR UCFC208CC Metric Four Bolt Cast Iron Round Flanged Housing with 40mm Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
1 1

SKU: UCFC208CC-SNR

SNR UCFC208CC Metric Four Bolt Cast Iron Round Flanged Housing with 40mm Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days

SNR UCFC208CC Metric Four Bolt Cast Iron Round Flanged Housing with 40mm Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
$88.31 ex VAT
$88.31 ex VAT
Sale Sold out

In stock

Price Break
3+ $65.79
4+ $63.13
9+ $61.80
19+ $59.81
49+ $58.48
99+ $55.15
499+ $46.52
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCFC Series 4 Bolt Round Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication, this style has the benefit of a shouldered back face to facilitate location of the housing prior to fastening in place. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
SNR - High Quality
Inside Diameter:
40mm
Style:
UCFC
Pitch Circle Diameter:
120mm
Technical
--- Dimensions
Shaft diameter d 40mm
A 36mm
A1 9mm
A2 41.2mm
A4 26mm
B 49.2mm
e 11mm
H3 100mm
J 120mm
L 145mm
N 14mm
S 19mm
Dz 88mm
Z 55.7mm
G M6x1
--- Load rating
Dynamic load C 29.6 kN
Static load C0 18.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 2.058 kg
