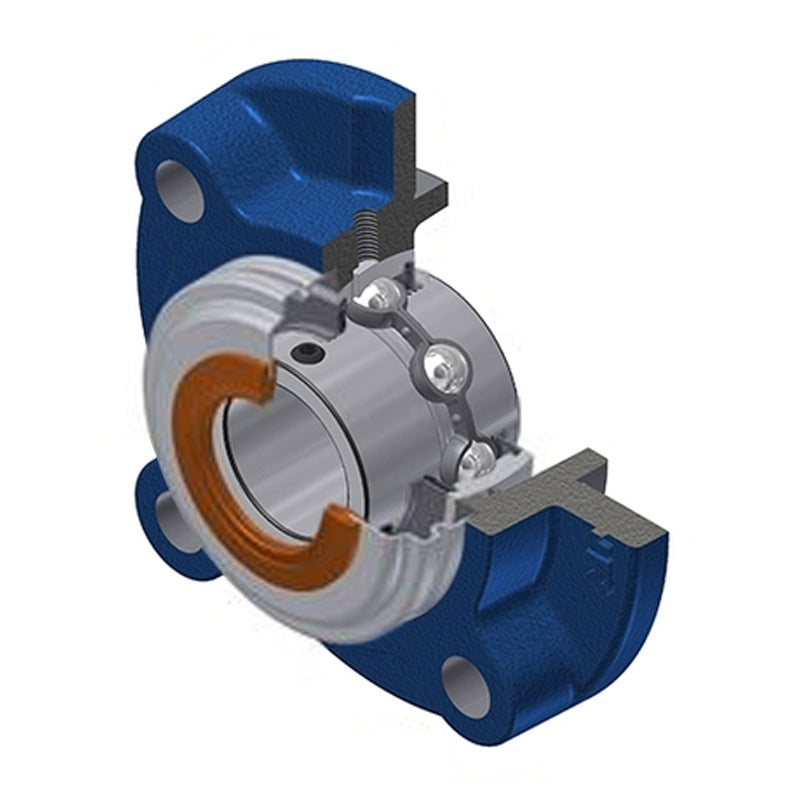

• SNR UCFC209CC Metric Four Bolt Cast Iron Round Flanged Housing with 45mm Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
  • SNR
1 2

SKU: UCFC209CC-SNR

SNR UCFC209CC Metric Four Bolt Cast Iron Round Flanged Housing with 45mm Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days

SNR UCFC209CC Metric Four Bolt Cast Iron Round Flanged Housing with 45mm Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
$71.72 ex VAT
$71.72 ex VAT
Sale Sold out

In stock

Price Break
3+ $48.04
4+ $45.34
9+ $44.80
19+ $44.26
49+ $43.72
99+ $43.18
499+ $40.48
999+ $39.94
1999+ $39.40
2999+ $38.86
4999+ $37.78

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
45mm
Style:
UCFC
Pitch Circle Diameter:
132mm
Technical
--- Dimensions
Shaft diameter d 45mm
A 38mm
A1 10mm
A2 40.2mm
A4 26mm
B 49.2mm
e 10mm
H3 105mm
J 132mm
L 160mm
N 16mm
S 19mm
Dz 95mm
Z 57.7mm
G M6x1
--- Load rating
Dynamic load C 31.85 kN
Static load C0 20.8 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 2.5 kg
