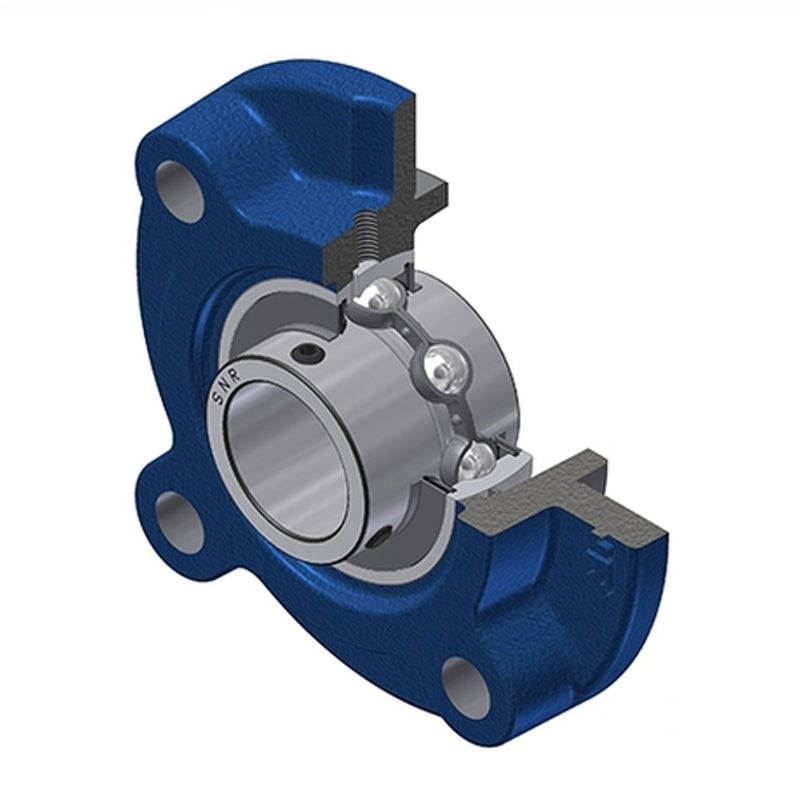

• SNR UCFC211-32 Imperial Four Bolt Cast Iron Round Flanged Housing with 2 inch Insert - Allow 2-3 Days
  • SNR
1 2

SKU: UCFC211-32-SNR

SNR UCFC211-32 Imperial Four Bolt Cast Iron Round Flanged Housing with 2 inch Insert - Allow 2-3 Days

SNR UCFC211-32 Imperial Four Bolt Cast Iron Round Flanged Housing with 2 inch Insert - Allow 2-3 Days
$70.45 ex VAT
$70.45 ex VAT
Sale Sold out

In stock

Price Break
3+ $47.19
4+ $44.54
9+ $44.01
19+ $43.48
49+ $42.95
99+ $42.42
499+ $39.76
999+ $39.23
1999+ $38.70
2999+ $38.17
4999+ $37.11

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
50.8mm = 2 Inch
Style:
UCFC
Pitch Circle Diameter:
150mm
Technical
--- Dimensions
Shaft diameter d 2 inch
A 42mm
A1 13mm
A2 46.4mm
A4 30mm
B 55.6mm
e 13mm
H3 125mm
J 150mm
L 185mm
N 19mm
S 22.2mm
G M6x1
--- Load rating
Dynamic load C 43.55 kN
Static load C0 29.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 16.8 Nm
Mass 3.98 kg
