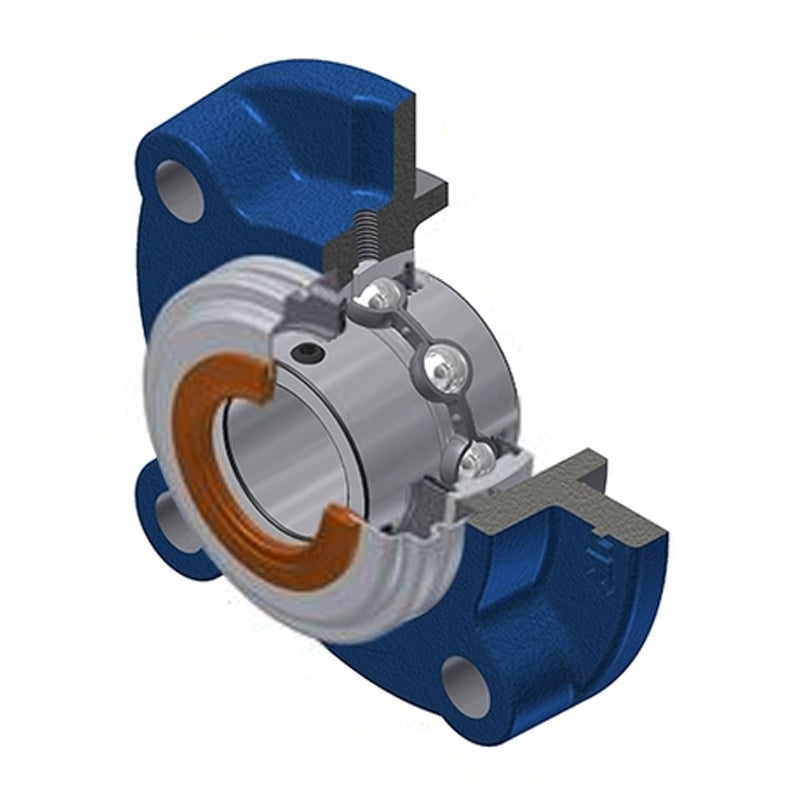

• SNR UCFC212CO Metric Four Bolt Cast Iron Round Flanged Housing with 60mm Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
  • SNR
1 2

SKU: UCFC212CO-SNR

SNR UCFC212CO Metric Four Bolt Cast Iron Round Flanged Housing with 60mm Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days

SNR UCFC212CO Metric Four Bolt Cast Iron Round Flanged Housing with 60mm Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
$108.09 ex VAT
$108.09 ex VAT
Sale Sold out

In stock

Price Break
3+ $72.40
4+ $68.33
9+ $67.52
19+ $66.70
49+ $65.89
99+ $65.08
499+ $61.01
999+ $60.20
1999+ $59.38
2999+ $58.57
4999+ $56.94

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
60mm
Style:
UCFC
Pitch Circle Diameter:
160mm
Technical
--- Dimensions
Shaft diameter d 60mm
A 48mm
A1 15mm
A2 56.7mm
A4 36mm
B 65.1mm
e 17mm
H3 135mm
J 160mm
L 195mm
N 19mm
S 25.4mm
Dz 120mm
Z 73.1mm
G M6x1
--- Load rating
Dynamic load C 52.5 kN
Static load C0 32.8 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 22 Nm
Mass 5.023 kg
