• SNR UCFC213 Metric Four Bolt Cast Iron Round Flanged Housing with 65mm Insert - Allow 2-3 Days
  • SNR
1 2

SKU: UCFC213-SNR

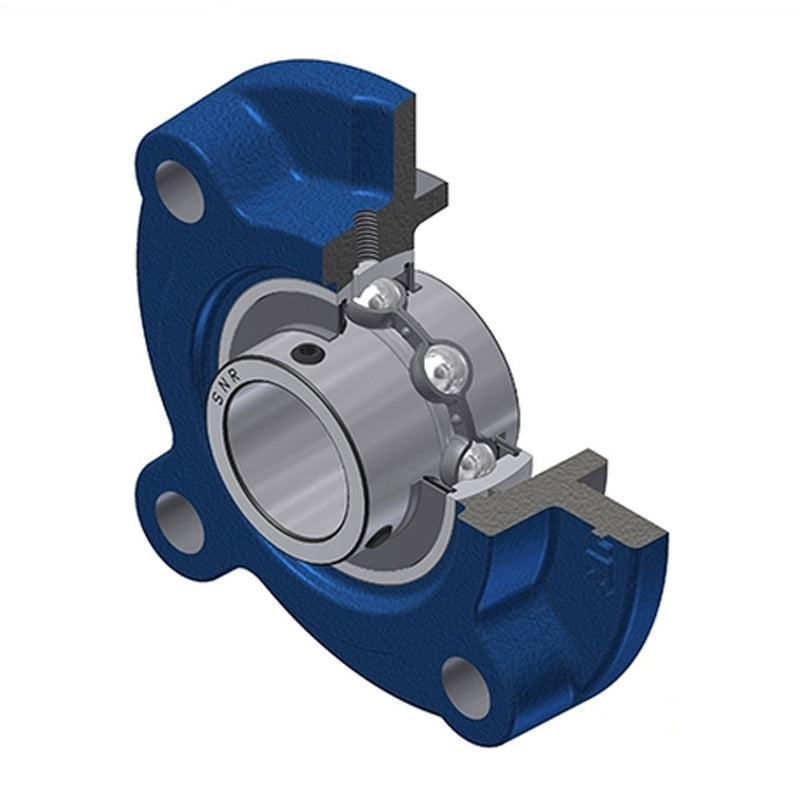

SNR UCFC213 Metric Four Bolt Cast Iron Round Flanged Housing with 65mm Insert - Allow 2-3 Days

SNR UCFC213 Metric Four Bolt Cast Iron Round Flanged Housing with 65mm Insert - Allow 2-3 Days
$111.00 ex VAT
$111.00 ex VAT
Sale Sold out

In stock

Price Break
3+ $74.35
4+ $70.17
9+ $69.34
19+ $68.50
49+ $67.67
99+ $66.83
499+ $62.65
999+ $61.82
1999+ $60.98
2999+ $60.15
4999+ $58.48

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
65mm
Style:
UCFC
Pitch Circle Diameter:
170mm
Technical
--- Dimensions
Shaft diameter d 65mm
A 49mm
A1 15mm
A2 55.7mm
A4 35mm
B 65.1mm
e 16mm
H3 145mm
J 170mm
L 205mm
N 19mm
S 25.4mm
G M6x1
--- Load rating
Dynamic load C 57.2 kN
Static load C0 40 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 33 Nm
Mass 5.48 kg
