SKU: UCFC213D1-NTN

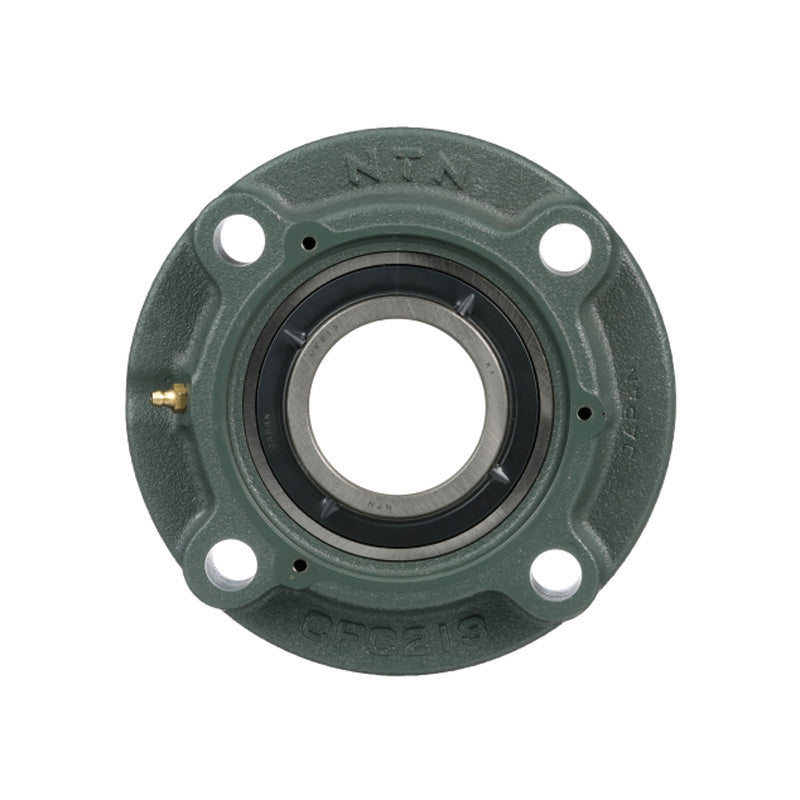

NTN UCFC213D1 Metric Four Bolt Cast Iron Round Flanged Housing with 65mm Insert - Allow 2-3 Days
NTN UCFC213D1 Metric Four Bolt Cast Iron Round Flanged Housing with 65mm Insert - Allow 2-3 Days
Regular price
$114.32
ex VAT
Regular price
Sale price
$114.32
ex VAT
In stock
Price Break
3+
$76.58
4+
$72.27
9+
$71.41
19+
$70.55
49+
$69.69
99+
$68.83
499+
$64.53
999+
$63.67
1999+
$62.81
2999+
$61.95
4999+
$60.23
Quantity
Couldn't load pickup availability
Description
Description
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 65mm
- Style:
- UCFC
- Pitch Circle Diameter:
- 120.2mm
Technical
Technical

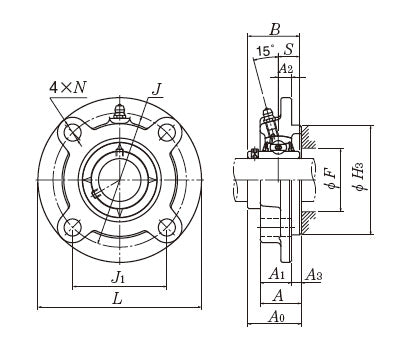

| --- | Dimensions |
|---|---|
| Shaft diameter | 65mm |
| L | 205mm |
| J | 170mm |
| (J<sub>1</sub>) | 120.2mm |
| A<sub>2</sub> | 16mm |
| N | 19mm |
| A<sub>3</sub> | 14mm |
| A<sub>1</sub> | 36mm |
| A | 50mm |
| H<sub>3</sub> | 145mm |
| A<sub>0</sub> | 69.7mm |
| B | 65.1mm |
| S | 25.4mm |
| Fixing bolt | M16 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 63.5 kN |
| Static load C<sub>0r</sub> | 40 kN |
| Fatigue load limit C<sub>u</sub> | 3.15 kN |
| --- | Unit information |
| Mass | 5.8 kg |
