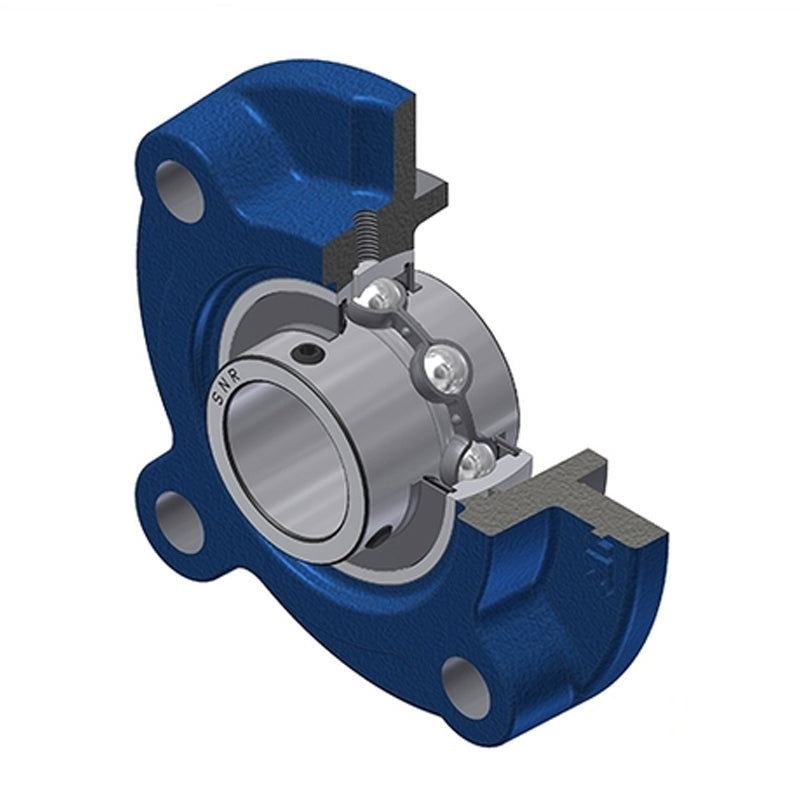

• SNR UCFC214 Metric Four Bolt Cast Iron Round Flanged Housing with 70mm Insert - Allow 2-3 Days
  • SNR
1 2

SKU: UCFC214-SNR

SNR UCFC214 Metric Four Bolt Cast Iron Round Flanged Housing with 70mm Insert - Allow 2-3 Days

SNR UCFC214 Metric Four Bolt Cast Iron Round Flanged Housing with 70mm Insert - Allow 2-3 Days
$153.69 ex VAT
$153.69 ex VAT
Sale Sold out

In stock

Price Break
3+ $102.94
4+ $97.16
9+ $96.00
19+ $94.85
49+ $93.69
99+ $92.53
499+ $86.75
999+ $85.59
1999+ $84.44
2999+ $83.28
4999+ $80.97

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
70mm
Style:
UCFC
Pitch Circle Diameter:
177mm
Technical
--- Dimensions
Shaft diameter d 70mm
A 52mm
A1 16mm
A2 61.4mm
A4 38mm
B 74.6mm
e 17mm
H3 150mm
J 177mm
L 215mm
N 19mm
S 30.2mm
G M10x1
--- Load rating
Dynamic load C 62 kN
Static load C0 45 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 33 Nm
Mass 6.32 kg
