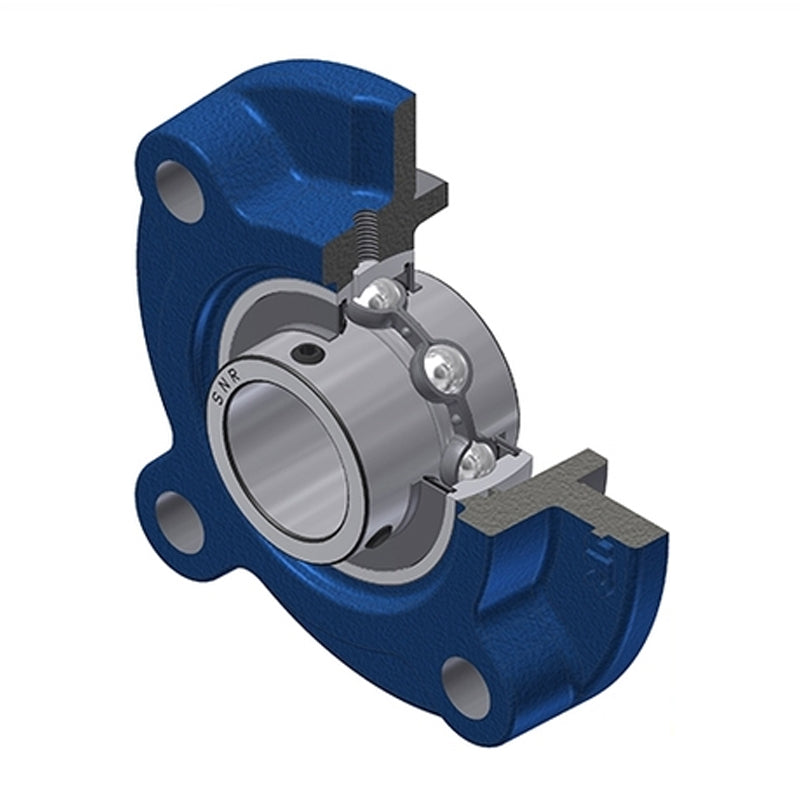

• SNR UCFC216 Metric Four Bolt Cast Iron Round Flanged Housing with 80mm Insert - Allow 2-3 Days
  • SNR
1 2

SKU: UCFC216-SNR

SNR UCFC216 Metric Four Bolt Cast Iron Round Flanged Housing with 80mm Insert - Allow 2-3 Days

SNR UCFC216 Metric Four Bolt Cast Iron Round Flanged Housing with 80mm Insert - Allow 2-3 Days
$212.54 ex VAT
$212.54 ex VAT
Sale Sold out

In stock

Price Break
3+ $142.36
4+ $134.36
9+ $132.76
19+ $131.16
49+ $129.56
99+ $127.97
499+ $119.97
999+ $118.37
1999+ $116.77
2999+ $115.17
4999+ $111.97

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
80mm
Style:
UCFC
Pitch Circle Diameter:
200mm
Technical
--- Dimensions
Shaft diameter d 80mm
A 58mm
A1 18mm
A2 67.3mm
A4 42mm
B 82.6mm
e 18mm
H3 170mm
J 200mm
L 240mm
N 23mm
S 33.3mm
G M10x1
--- Load rating
Dynamic load C 72.5 kN
Static load C0 54.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 33 Nm
Mass 8.94 kg
