SKU: UCFC217D1-NTN

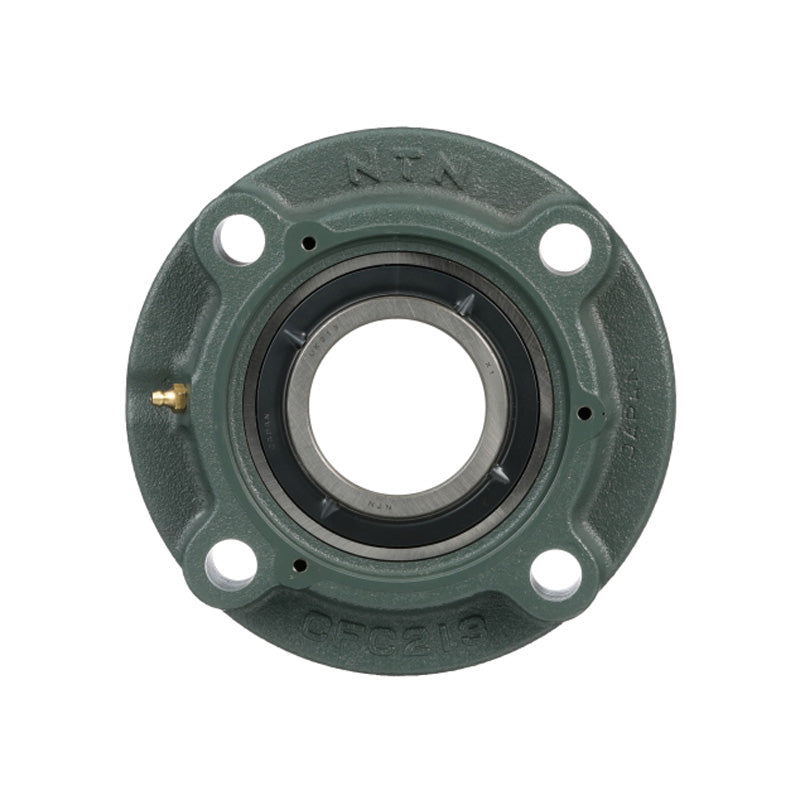

NTN UCFC217D1 Metric Four Bolt Cast Iron Round Flanged Housing with 85mm Insert - Allow 2-3 Days
NTN UCFC217D1 Metric Four Bolt Cast Iron Round Flanged Housing with 85mm Insert - Allow 2-3 Days
Regular price
$257.16
ex VAT
Regular price
Sale price
$257.16
ex VAT
In stock
Price Break
3+
$172.25
4+
$162.57
9+
$160.64
19+
$158.70
49+
$156.77
99+
$154.83
499+
$145.16
999+
$143.22
1999+
$141.28
2999+
$139.35
4999+
$135.48
Quantity
Couldn't load pickup availability
Description
Description
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 85mm
- Style:
- UCFC
- Pitch Circle Diameter:
- 147.1mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 85mm |
| L | 250mm |
| J | 208mm |
| (J<sub>1</sub>) | 147.1mm |
| A<sub>2</sub> | 18mm |
| N | 23mm |
| A<sub>3</sub> | 18mm |
| A<sub>1</sub> | 45mm |
| A | 63mm |
| H<sub>3</sub> | 180mm |
| A<sub>0</sub> | 87.6mm |
| B | 85.7mm |
| S | 34.1mm |
| F (Min.) | 113mm |
| Fixing bolt | M20 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 92 kN |
| Static load C<sub>0r</sub> | 64 kN |
| Fatigue load limit C<sub>u</sub> | 4.6 kN |
| --- | Unit information |
| Mass | 11 kg |
