SKU: UCFC217T20-SNR

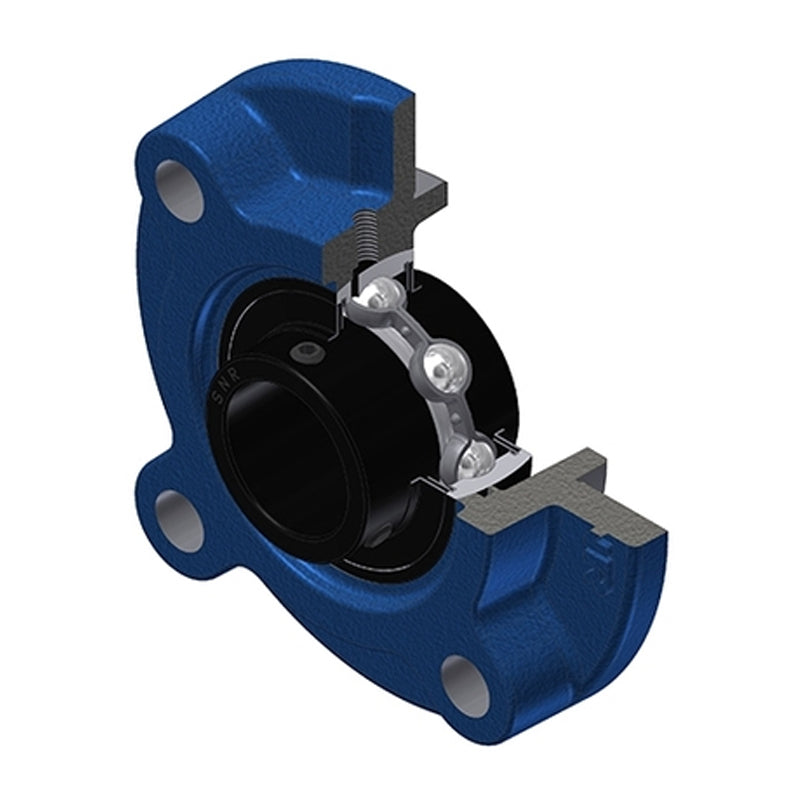

SNR UCFC217T20 Metric Four Bolt Cast Iron Round Flanged Housing with 85mm Insert Wide Temperature Version - Allow 2-3 Days
SNR UCFC217T20 Metric Four Bolt Cast Iron Round Flanged Housing with 85mm Insert Wide Temperature Version - Allow 2-3 Days
Regular price
$802.55
ex VAT
Regular price
Sale price
$802.55
ex VAT
In stock
Price Break
3+
$573.72
4+
$543.53
9+
$513.33
19+
$483.14
49+
$471.06
99+
$458.98
499+
$398.59
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Description
Description
|
UCFC Series 4 Bolt Round Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication, this style has the benefit of a shouldered back face to facilitate location of the housing prior to fastening in place. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 85mm
- Style:
- UCFC
- Pitch Circle Diameter:
- 208mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 85mm |
| A | 63mm |
| A1 | 20mm |
| A2 | 69.6mm |
| A4 | 45mm |
| B | 85.7mm |
| e | 18mm |
| H3 | 180mm |
| J | 208mm |
| L | 250mm |
| N | 23mm |
| S | 34.1mm |
| G | M10x1 |
| --- | Load rating |
| Dynamic load C | 83.2 kN |
| Static load C0 | 63.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 200°C |
| Recommended tightening torque for set screw | 33 Nm |
| Mass | 10.53 kg |
