SKU: UCFC218D1-NTN

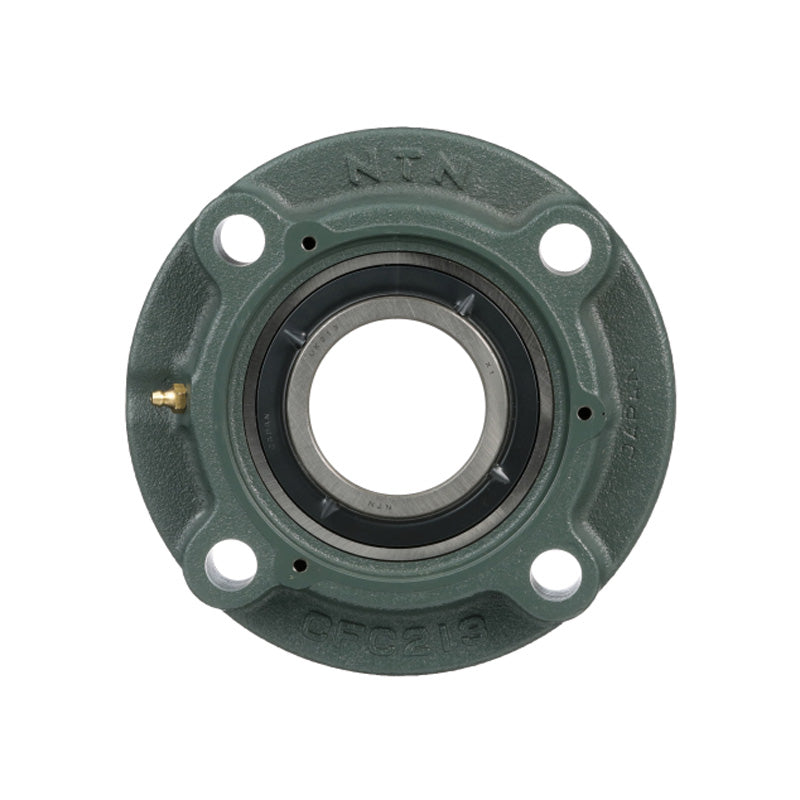

NTN UCFC218D1 Metric Four Bolt Cast Iron Round Flanged Housing with 90mm Insert - Allow 2-3 Days
NTN UCFC218D1 Metric Four Bolt Cast Iron Round Flanged Housing with 90mm Insert - Allow 2-3 Days
Regular price
$301.80
ex VAT
Regular price
Sale price
$301.80
ex VAT
In stock
Price Break
3+
$202.15
4+
$190.80
9+
$188.53
19+
$186.25
49+
$183.98
99+
$181.71
499+
$170.36
999+
$168.08
1999+
$165.81
2999+
$163.54
4999+
$159.00
Quantity
Couldn't load pickup availability
Description
Description
|
UCFC Series 4 Bolt Round Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication, this style has the benefit of a shouldered back face to facilitate location of the housing prior to fastening in place. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 90mm
- Style:
- UCFC
- Pitch Circle Diameter:
- 155.6mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 90mm |
| L | 265mm |
| J | 220mm |
| (J<sub>1</sub>) | 155.6mm |
| A<sub>2</sub> | 22mm |
| N | 23mm |
| A<sub>3</sub> | 18mm |
| A<sub>1</sub> | 50mm |
| A | 68mm |
| H<sub>3</sub> | 190mm |
| A<sub>0</sub> | 96.3mm |
| B | 96mm |
| S | 39.7mm |
| F (Min.) | 119mm |
| Fixing bolt | M20 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 106 kN |
| Static load C<sub>0r</sub> | 71.5 kN |
| Fatigue load limit C<sub>u</sub> | 5 kN |
| --- | Unit information |
| Mass | 13 kg |
