SKU: UCFCE204-SNR

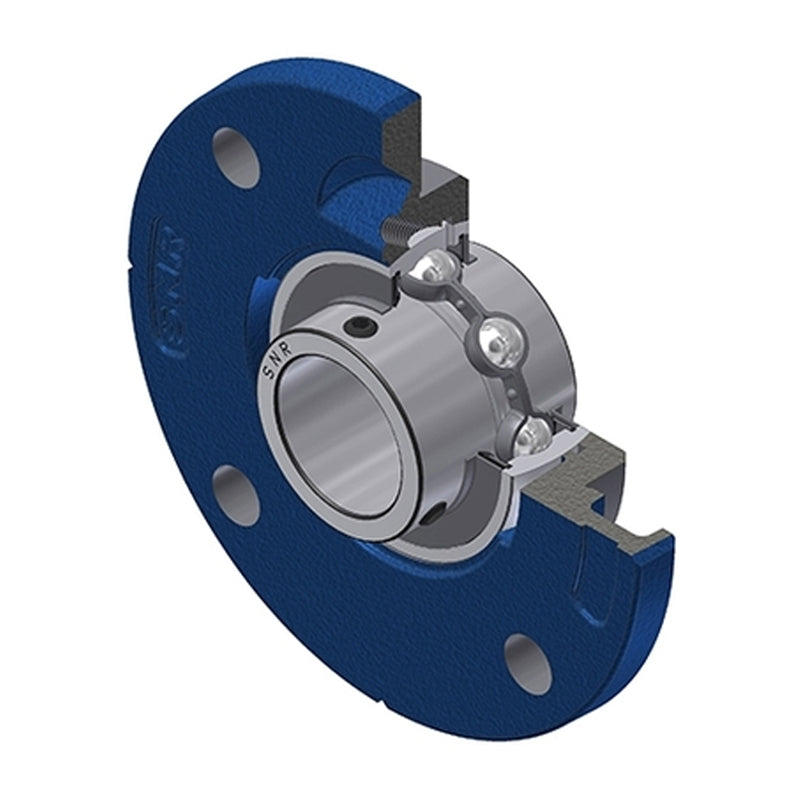

SNR UCFCE204 Metric Four Bolt Cast Iron Round Flanged Housing with 20mm Insert - Allow 2-3 Days
SNR UCFCE204 Metric Four Bolt Cast Iron Round Flanged Housing with 20mm Insert - Allow 2-3 Days
Regular price
$29.88
ex VAT
Regular price
Sale price
$29.88
ex VAT
In stock
Price Break
3+
$20.02
4+
$18.89
9+
$18.67
19+
$18.44
49+
$18.22
99+
$17.99
499+
$16.87
999+
$16.64
1999+
$16.42
2999+
$16.19
4999+
$15.74
Quantity
Couldn't load pickup availability
Description
Description
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 20mm
- Style:
- UCFCE
- Pitch Circle Diameter:
- 78mm
Technical
Technical

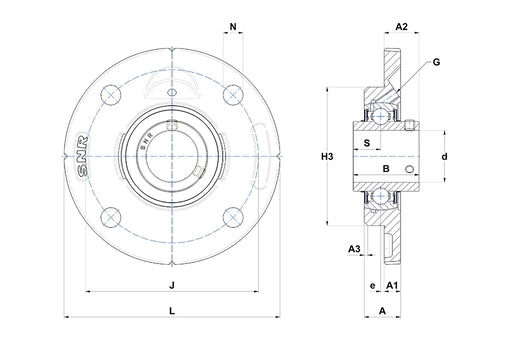

| --- | Dimensions |
|---|---|
| Shaft diameter | 20mm |
| A | 18mm |
| A1 | 8mm |
| A2 | 16.3mm |
| A3 | 2mm |
| B | 31mm |
| e | -2mm |
| H3 | 62mm |
| J | 78mm |
| L | 100mm |
| N | 9mm |
| S | 12.7mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 12.8 kN |
| Static load C0 | 6.65 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 5.5 Nm |
| Mass | 0.54 kg |
