• SNR UCFCE209 Metric Four Bolt Cast Iron Round Flanged Housing with 45mm Insert - Allow 2-3 Days
  • SNR
1 2

SKU: UCFCE209-SNR

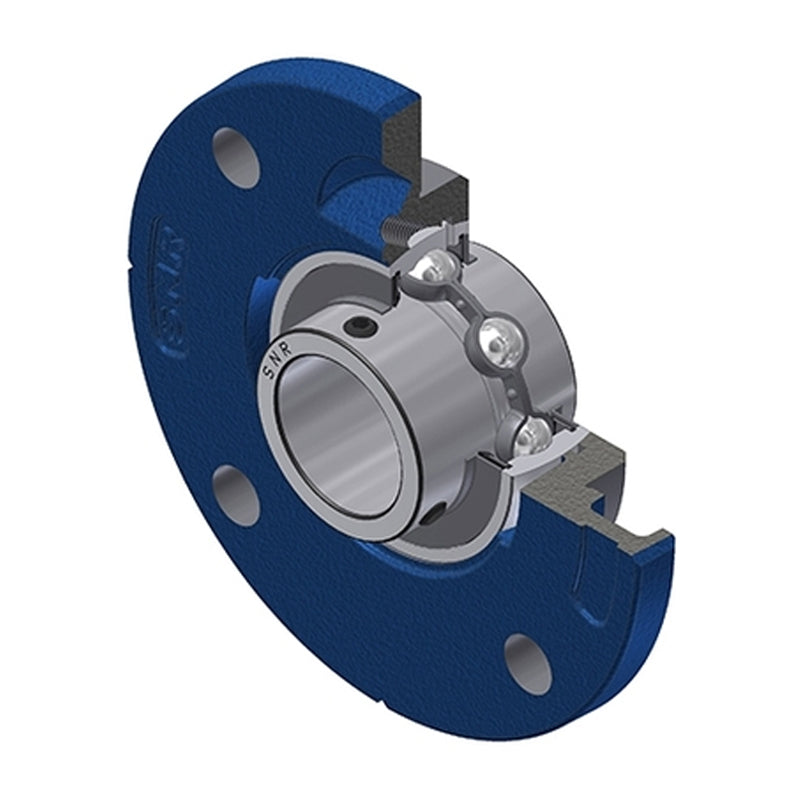

SNR UCFCE209 Metric Four Bolt Cast Iron Round Flanged Housing with 45mm Insert - Allow 2-3 Days

SNR UCFCE209 Metric Four Bolt Cast Iron Round Flanged Housing with 45mm Insert - Allow 2-3 Days
$56.35 ex VAT
$56.35 ex VAT
Sale Sold out

In stock

Price Break
3+ $37.75
4+ $35.63
9+ $35.20
19+ $34.78
49+ $34.35
99+ $33.93
499+ $31.81
999+ $31.38
1999+ $30.96
2999+ $30.54
4999+ $29.69

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
45mm
Style:
UCFCE
Pitch Circle Diameter:
130mm
Technical
--- Dimensions
Shaft diameter 45mm
A 25mm
A1 12mm
A2 28.2mm
A3 2mm
B 49.2mm
e -2mm
H3 105mm
J 130mm
L 155mm
N 14mm
S 19mm
G M6x1
--- Load rating
Dynamic load C 31.85 kN
Static load C0 20.8 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 1.86 kg
